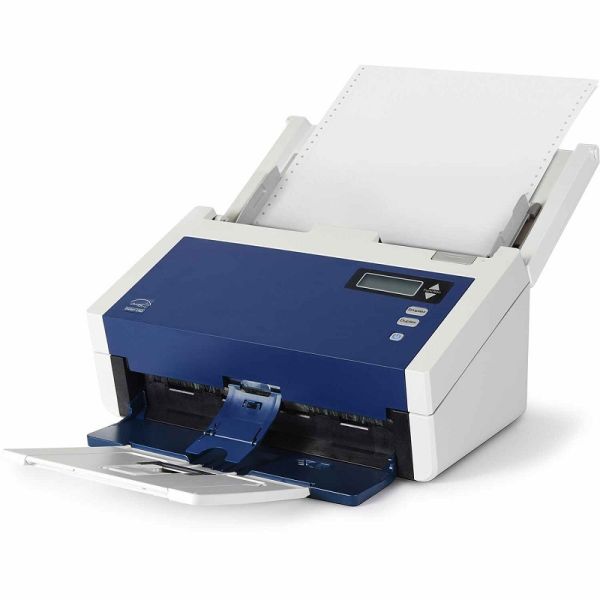

Xerox DocuMate XDM6480-U Document Scanner
secure transaction
- Simplex or Duplex: Duplex (two side scanning)
- Interface: Hi-speed USB 3.0 (2.0 compatible)
- Optical Resolution: 600 dpi
- ADF Capacity: 120 sheets (20 lb. paper)
- Visioneer OneTouch Technology (PC): Yes
- Duty Cycle: 10000 pages/day
- ADF Maximum Paper Size: 9.5 x 236 in
- ADF Minimum Paper Size: 2 x 2 in
- Output Bit Depth: 24 bit color, 8-bit grayscale, 1-bit black and white
- Light Source: LED
- Dimensions (W x D x H): 12.5 x 26.8 x 9.4 in
- Weight: 9.2 lbs
Xerox DocuMate XDM6480-U Document Scanner
Maximum dpi Resolution 1200 dpi Optical Resolution 600 dpi Duplex Speed 140 ipm (Color, Grayscale) Simplex Speed 70 ppm (Color) Maximum Document Width 9.5 in Maximum Document Length 236 in Color Depth 48-Bit (Internal)
24-Bit (External)Grayscale Depth 16-Bit (Internal)
8-Bit (External)Duplex Scanning Yes Single Pass Duplex Yes Scan Modes Color, Grayscale, Monochrome Media Handling ADF Daily Life Expectancy 10000 Sheets Interface USB 3.0 Media Types Business Card, Checks, ID Card, Plain Paper Paper Weight 7 to 110 lbs Maximum Paper Thickness 49.2 mil / 1.25 mm Operating System Compatibility Windows Light Source LED Image Sensor 1 x Charge-Coupled Device (CCD) Control Panel 5 Buttons Drivers TWAIN, WIA, ISIS Automatic Image Corrections Yes Environmental Compliance ENERGY STAR, WEEE, RoHS Operating Humidity 10 to 90% Operating Temperature 41 to 95°F / 5 to 35°C Maximum Power Consumption 24 W AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2 A DC Input Power 24 VDC at 2 A Power Source AC Adapter Dimensions 12.4 x 26.8 x 9.4 in Weight 9.2 lbs
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
