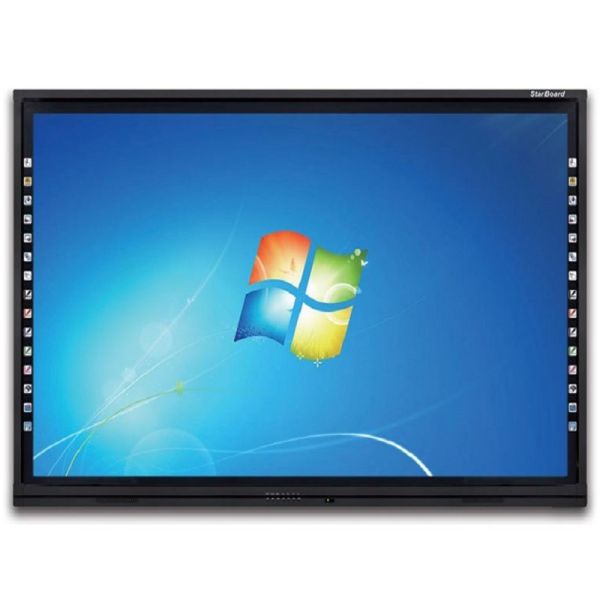

StarBoard TE-SN86 UHD Interactive Flat Panel LED Display (86")
secure transaction
- Display 86"
- Backlight Type LED
- Brightness 470cd
- Display Ratio 16:9
- Contrast Ratio 1400:1
- View Angle 178°
- Picture Mode 16:9/4:3/dot to dot/full screen
- Resolution 4K:3840x2160
- CVBS/Audio Input 1 X 3RCA (yellow, white, red)
- USB input 2 X Monitor USB-A (one is horizontal at the front, one is vertical at the back) 2:0
- 1 X PC USB-A (horizontal at the front, only have function when connect an OPS PC to the OPS slot.)
- PC-RGB Input 2 X D-SUB - 15Pin (blue)
- PC Audio Input 2 X 3.5mm Stereo audio-in jack (green)
- HDMI input 2 X HDMI-A (vertical), one inside for connecting OPS
- Touch Sensor Technology Infrared
- Sensor Recognition Finger, stylus pen or any non-transparent object
- Touch Points 10
- Weight 187.lb
- Voltage Range AC 90~240 V - 50/60 Hz
StarBoard TE-SN86 UHD Interactive Flat Panel LED Display
Product Type LED-backlit LCD flat panel display Power Consumption Operational 415 Watt Diagonal Class 86" Combined with Touchscreen TV Tuner No tuner TV Tuner Presence No Video Interface Component, composite, HDMI HDMI Ports Qty 3 ports PC Interface VGA (HD-15) Design Ultra Slim Design, Ultra Narrow Frame Width 78.9 in Depth 3.6 in Height 45.6 in Weight 191.8 lbs Display Resolution 3840 x 2160 Display Format 4K UHD (2160p) Image Aspect Ratio 16:09 LCD Backlight Technology LED backlight Image Contrast Ratio 1400:01:00 Brightness 470 cd/m² Viewing Angle 178° Viewing Angle (Vertical) 178° Touchpoints Qty 10 Response Time 19 ms Additional Features Infrared multitouch technology, 10-bit support, DrawView Gesture Recognition Patent Media Player USB Port Yes USB Ports Qty 2 Connections Connector Type 2 x VGA input
3 x HDMI input
Component video input
Composite video/audio input
2 x audio line-in
2 x USB 2.0
VGA output
RS-232
USBMiscellaneous Compliant Standards CB, FCC, RoHS Power Power Device Power supply Nominal Voltage AC 120/230 V (50/60 Hz) Power Consumption Stand by 1 Watt
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
