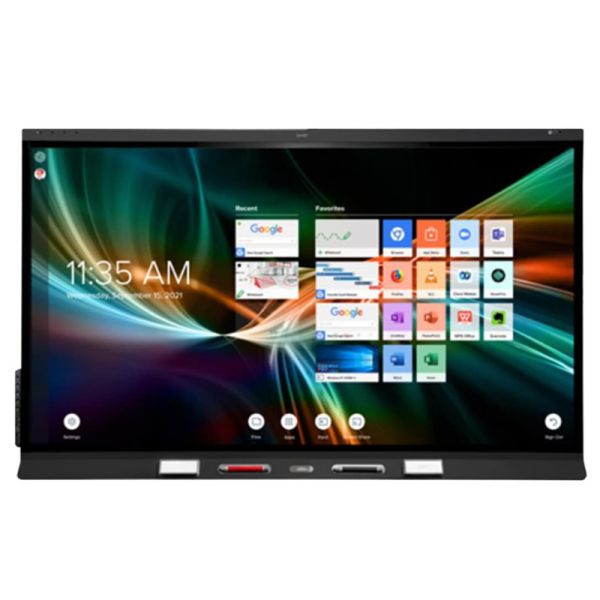

SMARTBOARD SBID-6286S-V3-P-86" Interactive Screen with iQ - Black
secure transaction
- Screen sizes (diagonal): 86"
- Backlight: LED
- Maximum display resolution : 4K UHD (3840 × 2160)
- Touch technology : HyPr Touch™ with InGlass™
- Multitouch capabilities : Up to 40 touch points (OS dependent)
- iQ built-in Android™ experience : Included
- Operating system : Android version 9.0
- Memory : 6 GB DDR
- Storage : 32 GB
- Weight : 185 lb.
- Dimensions : W x D x H : 78.9 x 4.9 x 48.1
SMARTBOARD SBID-6286S-V3-P-86" Interactive Screen with iQ - Black
-
Display Screen sizes (diagonal) 86" Backlight LED Aspect ratio 16:09 Maximum display resolution 4K UHD (3840 × 2160) Refresh rate 60 Hz Lifespan 50,000 hours Brightness (maximum) ≥ 350 cd/m² Response time 86": ≤ 8 ms Viewing angle 178° Glass Glass Fully heat-tempered anti-glare
glass that resists smudges and
fingerprintsFrame color White or black Convenience buttons Power, home, volume, screen
shade, freeze frameSensors Proximity, ambient light, infrared,
room temperature and humidityAudio 2 integrated 20 W speakers
Integrated linear four-microphone
arrayNFC Integrated RFID NFC reader/writer Interactive Experience Touch technology HyPr Touch™ with InGlass™ Touch features Tool Explorer™
Simultaneous Tool Differentiation
Object Awareness™
Pen ID™
Silktouch™
Pressure Sensitive InkTypical response time 9 ms Frame rate 150 Hz Accuracy ±1 mm Minimum object size 2 mm Multitouch capabilities Up to 40 touch points (OS
dependent)Tools included Pens (×2)
Erasers (×2)Tool holders Intelligent, magnetic, frame-mounted Optional tools Multicolor four-pen bundle Software iQ built-in Android™ experience Included SMART Meeting Pro® Room license Included SMART Meeting Pro Personal licenses (×10) Included SMART Ink® and SMART Product Drivers Included SMART Remote Management Subscription for length of the included warranty Iq Built-In Android Experience Operating system Android version 9.0 Memory 6 GB DDR Storage 32 GB Digital whiteboard YES Web browser YES Screen sharing YES Other features SMART Whiteboard
Customizable home screen
Live input preview
File and app libraries
Google Drive™ and OneDrive™ accessObject Awareness supported YES Ability to run third-party applications YES Cloud storage access YES NFC sign in to a SMART account YES Languages supported Chinese (simplified), Chinese
(traditional), Czech, Danish, Dutch,
English, Estonian, Finnish, French,
German, Greek, Hungarian, Italian,
Japanese, Korean, Latvian,
Lithuanian, Norwegian, Polish,
Portuguese, Romanian, Russian,
Slovak, Slovenian, Spanish, Swedish,
Ukrainian, Vietnamese, WelshUpdates Automatic over-the-air (OTA) Pc Computing OPS support YES OPS-C support YES PC module power supported OPS 60 W Optional computing modules SMART OPS PC with Windows 10 Pro
SMART ChromeboxInputs OPS PC accessory slot (60 W devices) Back - 1 HDMI® 2.1 with HDCP 1.4 and HDCP 2.3 support Front - 1, Back - 2 VGA video Back - 1 Stereo 3.5 mm Back - 1 RS-232 Back - 1 RJ45 Back - 2 USB Type-C 4K @ 60Hz, Display Port 1.2, USB 2.0
(UFP) for touch and digital audio, USB 2.0 (DFP) for
peripherals; 65 W power deliveryFront - 1 USB Type-C, 4K @ 60Hz, Display Port 1.2, USB 2.0
(UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP)
for peripherals; 65W power deliveryBack - 1 USB 2.0 Type-A Back - 2 USB 3.0 Type-A Front - 1, Back - 2 USB 3.0 Type-B Back - 3 USB 2.0 Type-B Front - 1 Outputs HDMI 2.1 Back - 1 Stereo 3.5 mm Back - 1 S/PDIF Back - 1 Included Cables And Accessories Country-specific power cable Qty - 1 USB cable Qty - 1 Pens (red and black) Qty - 2 Erasers Qty - 2 External dual-band 2.4 and 5 GHz antennae Qty - 3 Remote control Qty - 1 AAA batteries Qty - 2 WM-SBID-200 wall mount Qty - 1 SMART ID card (for NFC sign in) Qty - 2 Illustrated installation instructions Qty - 1 Important information document Qty - 1 Connectivity Wired RJ45 (×2) 1000baseT Wi-Fi IEEE 802.11 a/b/g/n/ac with 2 × 2
MIMO (both 2.4 and 5 GHz bands)
supporting WEP, WPA, WPA2 PSK,
and 802.1X EAP authentication
protocolsBluetooth 5.0 dual mode Storage And Operating Requirements Power requirements 100V to 240V AC, 50 Hz to 60 Hz Operating temperature 41–95°F (5–35°C) Storage temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity,
non-condensingPower Consumption Typical 86": 161 W Standby 0.4 W Certification And Compliance Regulatory models IDS665-3, IDS675-3, and IDS686-3 US / Canada UL, FCC, ISED, TSCA, CONEG
Packaging, Proposition 65Australia / New Zealand RCM Performance standards ENERGY STAR®, HDMI Purchasing Information SBID-6286S-V3-P SMART Board 6086S-V3 Pro
interactive display with iQTS-4PEN-MC Tool Explorer multicolor 4-pen
bundle (orange, purple, green, blue)
with magnetic penwellTW-SW-1 SMART TeamWorks™ Room perpetual
software includes 1 year maintenanceTW-SW-3 SMART TeamWorks Room perpetual
software includes 3 year
maintenanceTW-SW-5 SMART TeamWorks Room perpetual
software includes 5 year
maintenanceWarranty SMART Assure warranty Includes advanced hardware
replacement and access to onsite
support. Terms and conditions vary
by region. Contact your local reseller
or distributor for information and visit
https://legacy.smarttech.com/support/warranty-information?Cable Requirements HDMI Certified premium high speed HDMI
(18 Gbps)
Maximum length: 23' (7 m)USB 2.0 USB 2.0 certified
Hi-Speed (480 Mbps) support
Maximum length: 16' (5 m)USB 3.0 USB 3.0 certified
SuperSpeed (5 Gbps) support
Maximum length: 9' (3 m)USB Type-C USB 3.2 Gen 1 certified
SuperSpeed (5 Gbps) support
Maximum length: 6' (2 m)Installation, Dimensions, And Weights Weight 185 lb. Dimensions W x D x H : 78.9 x 4.9 x 48.1 Shipping weight 243 lb. VESA mount M8, 600 × 400 mm Handles 2
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
