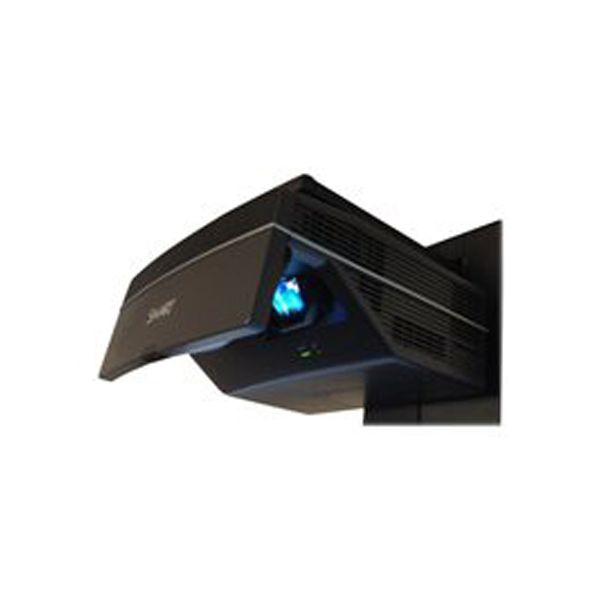

SMART UX80 Projector Retrofit kit SB685 - Smart Projector UX80-SB685 Retrofit Kit for Existing Installation

SMART Projector UX80-SB685 Retrofit Kits for Existing Installation

The all new SMART UX80-SB685 ultra-short-throw projector is HD-ready and provides 3,300 lumens for classrooms with high ambient lighting, and an ultra-short throw distance that virtually eliminates shadows and glare. The extended control panel provides easy access to all audiovisual products in the classroom and enables teachers to switch between inputs and access power and volume controls from one location.
The projector is mounted directly above the interactive whiteboard for simple installation, and the swivel projector mount makes alignment easier. And its long-lasting lamp and filter-free design reduce maintenance costs. The UX80 is also 3D ready, offers 2 HDMI inputs, an integrated speaker, and the ability to control 2 displays simultaneously.

SMART Projector Retrofit Kits UX80-SB685 Comes Standard With:

• 16.8" W x 7.8" H x 16.8" D
• Ultra short-throw lens
• DLP projector
• Widescreen Aspect Ratio
• WXGA (1280 x 800) Resolution
• Speaker Built-in Devices
• SMART Projector Retrofit Kits

SMART Projector Retrofit Kits  UX80-SB685 Specification   Product Highlights:     Product Description  SMART UX80 DLP projector - 3D Device Type  DLP projector - High Definition 720p 3D Capable Yes Built-in Devices  Speaker Brightness 3300 lumens Contrast Ratio 2000:1 Resolution  WXGA (1280 x 800) Native Aspect Ratio  Widescreen Lamp Type 280 Watt Lamp Life Cycle  2000 hour(s) / 3000 hour(s) (economic mode) Video Input  RGB ( NTSC, PAL, PAL-N, PAL-M, NTSC 4.43 ) Video Modes  480p, 720p, 1080p, 480i, 576i, 576p Speakers  Speaker(s) - integrated Power  AC 120/230 V ( 50/60 Hz ) Dimensions (WxDxH)  16.8 in x 16.8 in x 7.8 in Weight 19.4 lbs Manufacturer Warranty 3 years warranty     Extended Specifications     General       Device Type  DLP projector - HD 720p 3D Capable  Yes Built-in Devices  Speaker Networking Ethernet     Projector       Brightness 3300 lumens Brightness (Reduced) 2600 lumens Contrast Ratio 2000:1 Projection Distance  1.2 ft Throw Ratio 0.18:1 Resolution  WXGA - WXGA (1280 x 800) Native Aspect Ratio  Widescreen Video Bandwidth 150 MHz Max Sync Rate (V x H) 85 Hz x 68 kHz Lamp Type  280 Watt Lamp Life Cycle  2000 hour(s) / 3000 hour(s) (economic mode) Features  BrilliantColor, 16:9 aspect ratio support, Crestron RoomView, 16:10 aspect ratio support, 4:3 aspect ratio support, Ultra Short Throw Technology, 5:3 aspect ratio support, Ultra Short Throw Technology, 5:4 aspect ratio support, DLP Link     Video Input       TV System  NTSC, PAL, PAL-N, PAL-M, NTSC 4.43 Analog Video Signal RGB Video Interfaces VGA, HDMI Video Modes  480p, 720p, 1080p, 480i, 576i, 576p     Speakers       Type  Integrated Sound Output Mode  Mono Output Power / Channel 10 Watt Speaker(s) 1 x mixed channel     Expansion / Connectivity     Interfaces 2 x HDMI - 19 pin HDMI Type A , 1 x network - RJ-45 ( management ) , 1 x USB - 4 pin USB Type B ( management ) , 1 x audio line-out - mini-phone 3.5 mm , 1 x audio line-in - mini-phone 3.5 mm , 1 x VGA - 15 pin HD D-Sub (HD-15) , 1 x serial RS-232 - 9 pin D-Sub (DB-9) ( management )     Power       Power Device  Internal Nominal Voltage AC 120/230 V ( 50/60 Hz )     Dimensions & Weight     Width  16.8 in Depth 16.8 in Height 7.8 in Weight  19.4 lbs     Manufacturer Warranty     Service & Support 3 years warranty Service & Support Details  Limited warranty - 3 years ? Limited warranty - lamp - 1 year / 1000 hours     Environmental Parameters     Min Operating Temperature 41:F Max Operating Temperature 95 :F Humidity Range Operating 5 - 85% (non-condensing) Sound Emission 36 dBA Sound Emission (Economic Mode) 33 dBA
