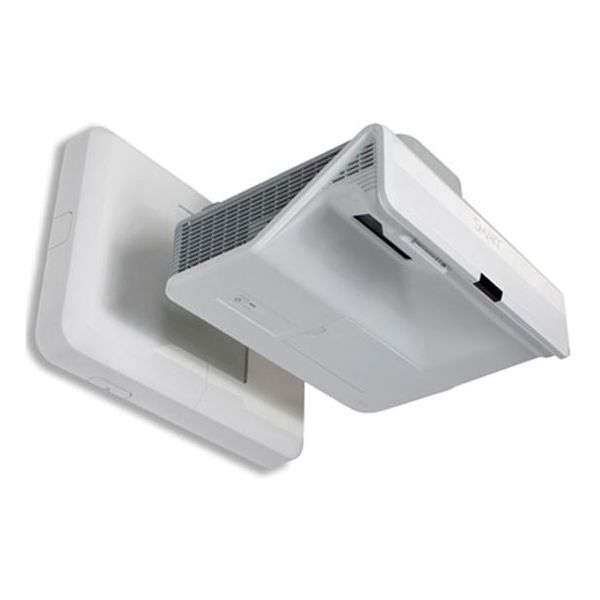

Smart U100W-SBM600 Projector Retrofit Kit

Smart U100W-SBM600 Projector Retrofit Kit

• Model: U100W-SBM600
  SMART U100 Projector
  Weight (projector only)	10 lb. (4.5 kg)
  Weight (projector and boom)	22 lb. (10 kg)
  Shipping weight (projector)	13 lb. 6 oz. (6.1 kg)
  Shipping dimensions (projector)	15 1/2" W x 8 1/2" H x 19 1/2" D (39.5 cm x 21.5 cm x 49.5 cm)
  Shipping weight (boom)	14 lb. 8 oz. (6.6 kg)
  Shipping dimensions (boom)	18 1/2" W x 12 3/4" H x 11 1/8" D (46.8 cm x 32.4 x 28.2 cm)
  Projector dimensions	15" W x 4" H x 12" D (38 cm x 10 cm x 30.5 cm)
  Hardware
  Brightness (standard)	3600 lumens 260 W mode at a CCT of 6500 K by the IEC method
  Brightness (economy)	2880 lumens 220 W mode at a CCT of 6500 K by the IEC method
  Native resolution	WXGA 1280 x 800 and 1280 x 720
  Aspect ratio	16:10:00
  Throw ratio	Short throw 0.27:1 ratio
  Throw distance	10" (24.3 cm)
  Display technology	The projection engine uses DLP® technology by Texas Instruments™, providing BrilliantColor™ performance and quality Gamma 2.2 correction with Bright Room, Dark Room, sRGB, User and SMART Presentation modes. Philips® ImageCare™ lamp control technology extends lamp life.
  Lamp life	5000 hours in Standard 260 W mode. 6500 hours in Economy 220 W mode (ImageCare on). 3000 hours in Standard 260 W mode. 5000 hours in Economy 220 W mode (ImageCare off).
  Integrated loud speaker	9 W rms
  Projector noise	35 dBA (high fan speed) or 32 dBA (standard fan speed), measured using the JIS method
  Contrast ratio (typical)	2900:01:00
  Video system compatibility	HDTV (720p and 1080i) video system compatibility and HD Ready (HDMI technology and 720p) available, NTSC, NTSC 4:43, PAL, PAL-N, PAL-M and SECAM (480i/p and 576i/p)
  Video interface compatibility	HDCP compliant HDMI, Composite, VESA® RGB with additional interface support for Component YPbPr and Component YCbCr inputs with the proper adapters (not included)
  Horizontal frequency	15 kHz–72 kHz
  Vertical frequency	15 Hz–75 Hz
  Clock frequency	165 Mhz
  External management	Infrared remote control, RS-232 control port, internal web page, Crestron® RoomView® management via Ethernet
  Theft protection	Projector system padlock ring and Kensington security slot
  Projector connectors	3.5 mm phone jack VGA 1 audio input 3.5 mm phone jack line out (×2) DB15F RGB VGA video input (VGA In) DB15F RGB VGA video output (VGA Out) DB9F RS-232 control port HDMI 1.4 input (×2) Power (100V–240V AC at 50 Hz–60 Hz) USB B receptacle (for service use only) RJ45 Ethernet connector 7-pin mini-DIN for ECP data 4-pin mini-DIN 5V/2A output for ECP USB HUB/switch power RCA analog audio and composite video (red, white and yellow) Microphone 3.5 mm USB A receptacle (for HDMI streaming device), power only +5 VDC
  Operating temperature	Standard speed: 41°F to 95°F (5°C to 35°C) from 0' to 6000' (0 m to 1800 m) High speed: 41°F to 86°F (5°C to 30°C) from 6000' to 6800' (1800 m to 2100 m)
