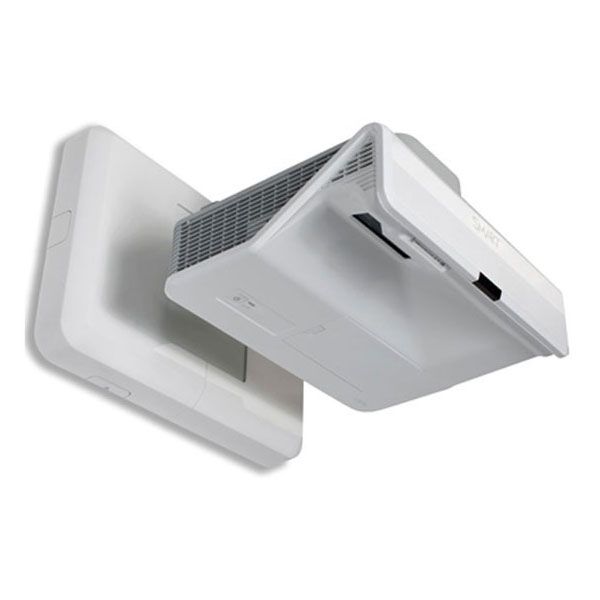

Smart U100-SBM600 Projector Retrofit Kit

Smart U100-SBM600 Projector Retrofit Kit

• Model: U100-SBM600
  Type	Projector Retrofit Kit
  Used for	Existing SBM680 Installation
  Weight (projector only)	10 lb. (4.5 kg)
  Weight (projector and boom)	22 lb. (10 kg)
  Shipping weight (projector)	13 lb. 6 oz. (6.1 kg)
  Shipping dimensions (projector)	15 1/2" W × 8 1/2" H × 19 1/2" D (39.5 cm × 21.5 cm × 49.5 cm)
  Shipping weight (boom)	14 lb. 8 oz. (6.6 kg)
  Shipping dimensions (boom)	18 1/2" W × 12 3/4" H × 11 1/8" D (46.8 cm × 32.4 × 28.2 cm)
  Projector dimensions	15" W × 4" H × 12" D (38 cm × 10 cm × 30.5 cm)
  Brightness (standard)	3600 lumens 260 W mode at a CCT of 6500 K by the IEC method
  Brightness (economy)	2880 lumens 220 W mode at a CCT of 6500 K by the IEC method
  Native resolution	XGA 1024 × 768
  Aspect ratio	4:03:00
  Throw ratio	Short throw 0.33:1 ratio
  Throw distance	10 3/8" (26.4 cm)
  Display technology	The projection engine uses DLP® technology by Texas Instruments™, providing BrilliantColor™ performance and quality Gamma 2.2 correction with Bright Room, Dark Room, sRGB, User and SMART Presentation modes. Philips® ImageCare™ lamp control technology extends lamp life.
  Lamp life	5000 hours in Standard 260 W mode. 6500 hours in Economy 220 W mode (ImageCare on). 3000 hours in Standard 260 W mode. 5000 hours in Economy 220 W mode (ImageCare off).
  Integrated loud speaker	9 W rms
  Projector noise	35 dBA (high fan speed) or 32 dBA (standard fan speed), measured using the JIS method
  Contrast ratio (typical)	2900:01:00
  Video system compatibility	HDTV (720p and 1080i) video system compatibility and HD Ready (HDMI technology and 720p) available, NTSC, NTSC 4:43, PAL, PAL-N, PAL-M and SECAM (480i/p and 576i/p)
  Video interface compatibility	HDCP compliant HDMI, Composite, VESA® RGB with additional interface support for Component YPbPr and Component YCbCr inputs with the proper adapters (not included)
  Horizontal frequency	15 kHz–72 kHz
  Vertical frequency	15 Hz–75 Hz
  Clock frequency	165 Mhz
  External management	Infrared remote control, RS-232 control port, internal web page, Crestron® RoomView® management via Ethernet
  Theft protection	Projector system padlock ring and Kensington security slot
