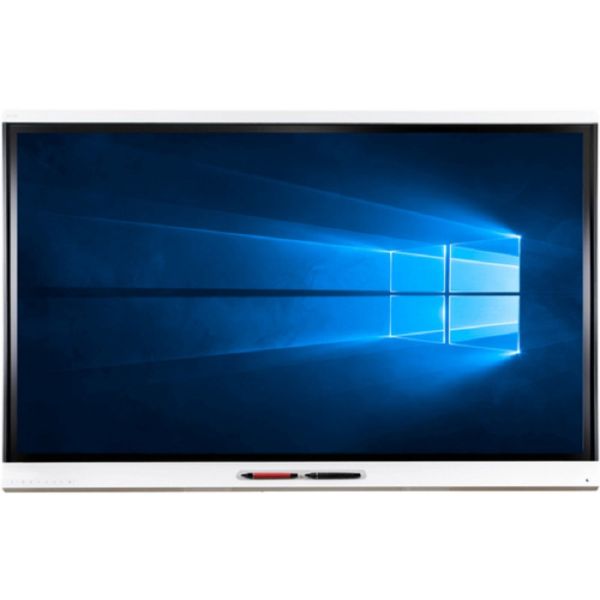

SMART SPNL-6375-V3-PENT Interactive Display with iQ + SMART Learning Suite + Intel CC (Pentium) + Win 10 Pro
secure transaction
- Manufacturer : SMART
- Type : LED
- Diagonal in Inches : 75
- Aspect Ratio : 16:9
- Touch Points : 8
- Contrast ratio (typical) 4000:1
- Resolution : 3840 × 2160 at 60 Hz
- Power Requirements : 100V to 240V AC, 50 Hz to 60 Hz
- Weight : 199 lb.
- Dimensions(W X H X D) : 68" x 43" x 5"
SMART SPNL-6375-V3-PENT Interactive Display with iQ + SMART Learning Suite + Intel CC (Pentium) + Win 10 Pro
Interaction Touch Technology DViT (Digital Vision Touch) technology Multitouch Capabilities 8 Touches Object Awareness Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger or palm. Display Type LED Aspect Ratio 16:09 Resolution 3840 × 2160 at 60 Hz Horizontal Frequency 135 kHz Vertical Frequency 60 Hz Contrast Ratio 4000:1 Brightness (Maximum) 420 cd/m² Pixel Dimensions 0.429 mm × 0.429 mm Gamut 88% of NTSC Viewing Angle 178° Response Time 8 ms Presence Detection Presence detection sensor on the bottom frame Audio 10 W integrated speakers (×2) Noise Level Up to 35 dBA Included Cables and
AccessoriesiQ appliance
Intel Compute Card
8' (2.4 m) country-specific power cable
16' 5" (5 m) USB cable
Pen (×2)IQ Experience Wi-Fi IEEE 802.11A/B/G/N/Ac with 2 × 2 MIMO (both 2.4 and 5 GHz bands) Bluetooth Bluetooth 4.0 dual mode (backwards compatible with Bluetooth 2.1 + EDR) Supported Languages Danish
Dutch
English
Finnish
French
German
Italian
Korean
Norwegian
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Ukrainian
VietnameseConnectors Side Connector Panel Connector panel
OPS slot (for the iQ appliance)
HDMI®1 input connectors
HDMI 1.4 in
USB Type-B
HDMI2 input connectors
HDMI 1.4 in
USB Type-B
DisplayPort input connectors
in
USB-Type-B
Stereo 3.5 mm out
RS-232 inIQ Appliance USB 3.0 Type-A (×2)
HDCP encrypted HDMI out
RJ45Bottom Connector Panel USB 2.0 Type-A Back AC power inlet Hdcp Support Version 1.4/2.2 Installation Requirements Interactive Display See the SMART Board 6000 and 6000 Pro series interactive displays Smart Notebook Player iOS 10 or later operating system software Desktop Internet Explorer® 10 or later
Chrome 39.0.2171.95 or later
Firefox® 34.0.5 or later
Safari 8.0 or laterGeneral Requirements 4K UHD Graphics card that can support 3840 × 2160 resolution at 30 Hz and that has 1 GB DDR 5 memory Cable Requirements Hdmi Maximum length: 23' (7 m) Displayport DisplayPort 1.2 compliant or better
Maximum length: 23' (7 m)USB Maximum length: 16' (5 m) Storage and Operating Requirements Power Requirements 100V to 240V AC, 50 Hz to 60 Hz Standby Mode 22–24 W Normal Operating (Out-Of-Box) 153 W Operating Temperature 41–95°F (5–35°C) Storage Temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity, non-condensing Weight 199 lb. Dimensions (Wxhxd) 68" x 43" x 5"
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
