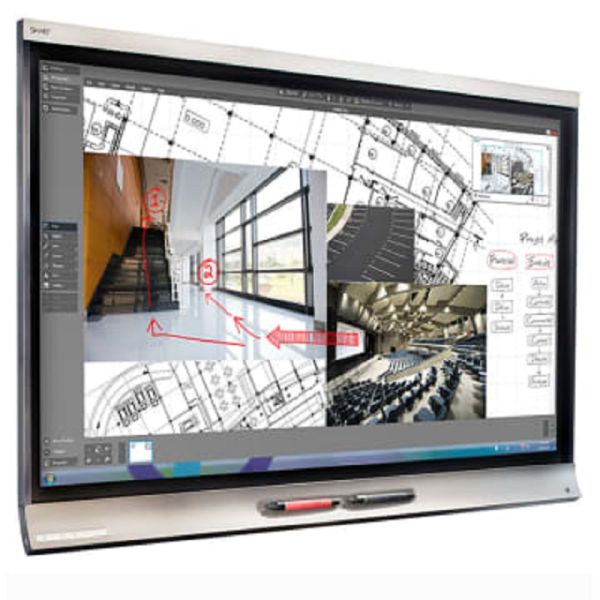

SMART SPNL-6075P 75" Pro Interactive Flat Panel w/ SMART Meeting Pro
secure transaction
- Pro Interactive Flat Panel w/ SMART Meeting Pro
- Series 6000 Pro
- Weight 185 lbs.
- Type LED
- Aspect ratio 16:9
- Contrast ratio 5000:1
- Brightness 360 cd/m²
- Gamut 72% of NTSC
- Response time 8 ms
- Power requirements 100V to 240V AC, 50 Hz to 60 Hz
- Optimal resolution 3840 × 2160 at 30 Hz (HDMI) or 60 Hz (DisplayPort)
- Viewing angle 178°
SMART SPNL-6075P 75" Pro Interactive Flat Panel w/ SMART Meeting Pro
Type 75" interactive LED Series 6000 Pro Weight 185 lbs. Hardware Touch technology DViT (Digital Vision Touch) technology Multitouch capabilities 8 touches Object awareness Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser or palm. Pen ID Two people can write independently and simultaneously, using different colored ink Type LED Aspect ratio 16:9 Optimal resolution 3840 × 2160 at 30 Hz (HDMI) or 60 Hz (DisplayPort) Horizontal frequency(typical) 135 kHz Vertical frequency (typical) 60 Hz Contrast ratio (typical) 5000:1 Brightness (maximum) 360 cd/m² Pixel dimensions 0.429 mm × 0.429 mm Gamut 72% of NTSC Viewing angle 178° Response time (typical) 8 ms Presence detection Presence detection sensor on the bottom frame Audio 10 W integrated speakers (×2) Noise level <35 dBA Included cables and accessories 8' (2.4 m) country-specific power cable
16' 5" (5 m)
USB cable Pen (×2)Wireless technology Bluetooth 4.0 dual mode (backwards compatible with Bluetooth 2.1 + EDR) Capture options Establish a Bluetooth wireless connection with a supported mobile device (see below) by scanning the interactive display’s unique QR code Mounting holes For a standard VESA 600 mm × 400 mm mounting plate Lower mounting holes 13 3/4" (35 cm) from the bottom of the interactive display Mounting bracket depth Minimum depth of 1 5/8" (4.2 cm) for all components on the back of the interactive display to clear the wall Connectors Connector panel OPS Slot
HDMI1 input connectors
HDMI in
USB Type-B
HDMI2 input connectors
HDMI in
USB Type-B
DisplayPort input connectors
DisplayPort in
USB-Type-B
Stereo 3.5 mm out
RS-232 inBottom USB 2.0 Type-A Back AC power inlet Storage and operating Power requirements 100V to 240V AC, 50 Hz to 60 Hz Power consumption at 77°F (25°C) Standby mode 19 W Normal operating 190 W Maximum operating 315 W Operating temperature 41–95°F (5–35°C) Storage temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity, non-condensing
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
