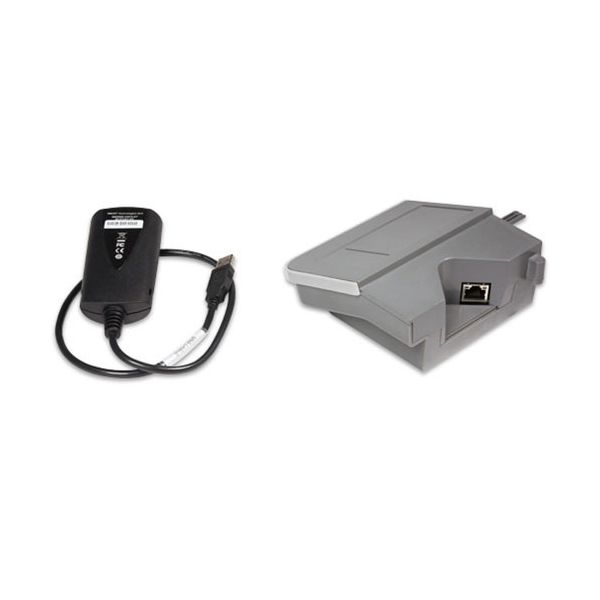

Smart SBX800 CAT5-XT Cat 5 USB Extender

Smart SBX800 CAT5-XT Cat 5 USB Extender

• Model: SBX800 CAT5-XT
  Description	Cat 5 to USB extender
  Used for	SMART Board™ X800 series interactive whiteboard
  USB connection adapter size	2" W × 3/4" H × 4" D with 22" USB cable
  Pen tray extension module size	5 1/8" W × 2 1/8" H × 5" D (13 cm × 5.5 cm × 12.8 cm)
  Shipping weight	0.86 lb. (0.39 kg)
  Shipping size	7 1/8" W × 2 5/8" H × 5 3/8" D (18.1 cm × 6.7 cm × 13.8 cm)
  Extension	Up to 50' (15.25 m) on Windows® or Mac computers
  USB device support	USB 2.0 device recognized as a USB HID and audio device by the computer’s operating system
  Maximum power	USB connection adapter draws 250 mA from the USB port on a host computer
  Cables required	A Cat 5, 5e or 6 communication cable (not supplied) is required to connect the pen tray extension module to the USB connection adapter at the host computer. This type of communication cable is commonly used with computer networks or digital telephony systems. A shielded cable (STP) is recommended for best performance and for protection against sources of RF interference. The communication cable must not exceed 50' (15.25 m) for either Windows or Mac computers.
  USB connection adapter	One USB A plug on a 22" (55.9 cm) attached cable. One RJ45 jack.
  Pen tray extension module	One card edge connector. One RJ45 jack
  Compatibility	Only compatible with the SMART Board X800 series interactive whiteboard
  Communication	Converts USB data from a host computer to RS-422 serial data
  Operating temperature	39°F to 104°F (5°C to 40°C)
  Environmental compliance	RoHS, EU WEEE, US CPSIA, China EIP and Packaging
  Regulatory certifications	FCC, CE
