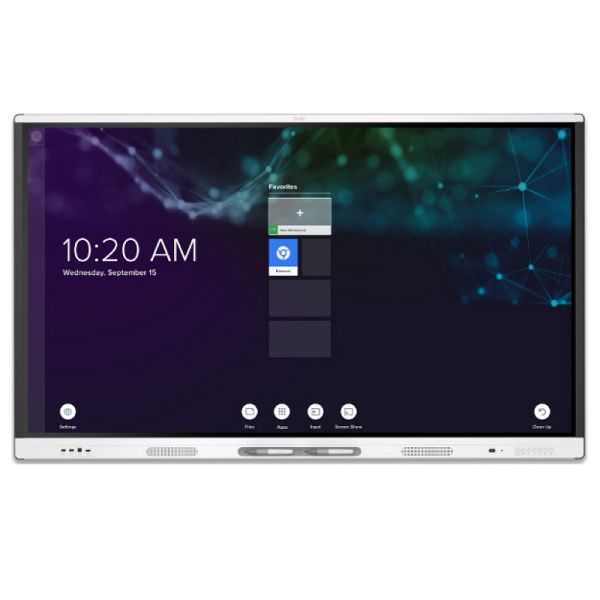

SMART SBID-MX286-V2-PW Pro Interactive Display With IQ - White

• Manufacturer : SMART
• Type : LED backlit LCD (A grade)
• Diagonal in Inches : 86
• Touch Technology : HyPr Touch
• Aspect Ratio : 16:9
• Touch Points : 20
• Resolution : 4K Ultra HD
• Power Requirements : 100V to 240V AC, 50 Hz to 60 Hz
• Weight : 181 lb.
• Dimensions(W X H X D) : 78" x 47" x 4"

SMART SBID-MX286-V2-PW Pro Interactive Display With IQ - White

• Interaction
  Touch Technology	HyPr Touch with EMR
  Multitouch Capabilities	Up to 20 finger touch points, four pen touch points and two eraser touch points
  Object Awareness	Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser, or palm
  Positioning Accuracy	Up to 2 mm
  Display
  Type	LED backlit LCD (A grade)
  Aspect Ratio	16:09
  Resolution	4K UHD (3840 × 2160)
  Horizontal Frequency	31 Hz–140 kHz
  Vertical Frequency	59 Hz–70 Hz
  Brightness (Maximum)	400 cd/m²
  Refresh Frequency	60 MHz
  Pixel Clock (Maximum)	600 MHz
  Pixel Dimensions	0.49 mm
  Viewing Angle	178°
  Response Time	8 ms
  Ambient Light Sensor	Yes
  Audio	15 W integrated speakers (×2)
  Wireless	IEEE 802.11a/b/g/n/ac with 2 × 2 MIMO (both 2.4 and 5 GHz bands)
  Included Cables And Accessories	Country-specific power cable 16' 5" (5 m) USB cable Wall mount bracket kit Pen (×2) Antenna (×2) IR remote control (with two AAA batteries)
  Mounting Holes	For a standard VESA 700 mm × 400 mm mounting plate with M8 screws
  Mounting Bracket Depth	Minimum clearance depth of 1 1/4" (3 cm) for all components on the back of the interactive display for airflow
  Iq Experience
  Iq Experience	iQ experience embedded in the display provides better performance without the need to install a separate appliance
  Included Apps And Features	Customizable Home screen Whiteboard Browser Screen Share File and app libraries Writing and drawing over any input Freeze screen and screen shade Automatic software updates
  Supported Languages	Danish Dutch English Finnish French German Italian Korean Norwegian Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Ukrainian Vietnamese
  Software
  Included Software	iQ Android-based embedded computing One SMART Meeting Pro® software room license and 10 personal licenses SMART Ink and SMART Product Drivers
  Other Software
  Smart Teamworks	Collaboration software that simplifies meetings and facilitates deeper, more natural interaction with on-site and remote participants. See SMART TeamWorks for more information.
  Smart Remote Management	Cloud-based device management software for remotely maintaining, supporting, controlling, and securing the display and your other devices. Comes installed on the display and can be used as a 30-day trial before activation. See SMART Remote Management for more information.
  Connectors
  Side Connector Panel	1 Accessory slot (for 60W OPS devices) 1 HDMI 1.4 out with HDCP support 1 USB 2.0 Type-A (for service use only) 1 USB 3.0 Type-A (for currently selected input source) HDMI 1 1 HDMI in with HDCP 2.2 support 1 USB 3.0 Type-B (for touch) HDMI 2 1 HDMI in with HDCP 2.2 support 1 USB 3.0 Type-B (for touch)
  Front Connector Panel	1 USB 2.0 Type-A (for the display) 1 USB 2.0 Type-A (for currently selected input source) HDMI 3 1 HDMI 2.0 in with HDCP 2.2 support 1 USB 2.0 Type-B (for touch)
  Bottom Connector Panel	1 RS-232 2 RJ45 1 S/PDIF out (fixed) 1 Stereo 3.5 mm out (variable) VGA 1 1 Stereo 3.5 mm in (for VGA in) 1 VGA in 1 USB 3.0 Type-B (for touch)
  Cable Requirements
  Hdmi	Maximum length: 23' (7 m)
  Usb 2.0	USB 2.0 certified Hi-Speed (480 Mbps) support Maximum length: 16' (5 m)
  Usb 3.0	USB 3.0 certified SuperSpeed (5 Gbps) support Maximum length: 9' (3 m)
  Storage and Operating Requirments
  Power Requirements	100V to 240V AC, 50 Hz to 60 Hz
  Standby Mode	Up to 0.5 W
  Normal Operating (Out-Of-Box)	189 W
  Operating Temperature	41–95°F (5–35°C)
  Storage Temperature	-4–140°F (-20–60°C)
  Humidity	5–80% relative humidity, non-condensing
  Weight	181 lb.
  Dimensions:(W X H X D)	78" x 47" x 4"
