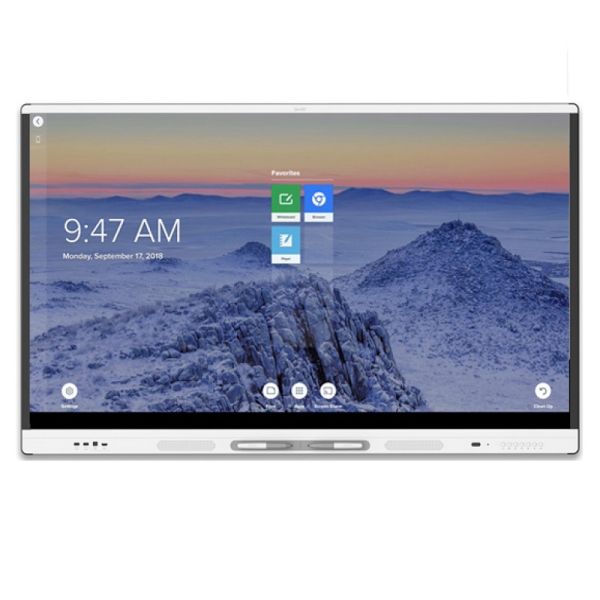

SMART SBID-MX265-V2-PW Pro Interactive Display with IQ - White
secure transaction
- Manufacturer : SMART
- Type : LED backlit LCD (A grade)
- Diagonal in Inches : 65
- Touch Technology : HyPr Touch
- Aspect Ratio : 16:9
- Touch Points : 20
- Resolution : 4K Ultra HD
- Power Requirements : 100V to 240V AC, 50 Hz to 60 Hz
- Weight : 102 lb.
- Dimensions(W X H X D) : 59" x 36" x 3"
SMART SBID-MX265-V2-PW Pro Interactive Display with IQ - White
Interaction Touch Technology HyPr Touch with Advanced IR Multitouch Capabilities Up to 20 simultaneous touch, writing, or erase points1 2 Object Awareness Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger or palm. Positioning Accuracy Up to 2 mm Display Type LED backlit LCD (A grade) Aspect Ratio 16:09 Resolution 4K UHD (3840 × 2160) Horizontal Frequency 31 Hz–140 kHz Vertical Frequency 59 Hz–70 Hz Brightness (Maximum) 400 cd/m² Refresh Frequency 60 Hz Pixel Clock (Maximum) 590 MHz Pixel Dimensions 0.37 mm Wireless IEEE 802.11a/b/g/n/ac with 2 × 2 MIMO (both 2.4 and 5 GHz bands) Included Cables and Accessories Country-specific power cable
16' 5" (5 m) USB cable
Wall mount bracket kit
Antenna (×2)
IR remote control (with two AAA batteries)Mounting Holes For a standard VESA 600 mm × 400 mm mounting plate with M8 screws IQ Experience IQ Experience iQ experience embedded in the display provides better performance without the need to install a separate appliance
Included Apps and Features Customizable Home screen
Whiteboard
Browser
Screen Share
File and app libraries
Writing and drawing over any input
Freeze screen and screen shade
Automatic software updatesSupported Languages Chinese
Danish
Dutch
English
Finnish
French
German
Italian
Korean
Norwegian
Portuguese
Russian
Spanish
Swedish
Ukrainian
VietnameseSoftware Included Software iQ Android-based embedded computing
SMART Ink and SMART Product DriversConnectors Side Connector Panel 1 Accessory slot (for 60W OPS devices)
1 HDMI 2.0 out with HDCP 2.2 support3
1 USB 2.0 Type-A (for service use only)
1 USB 3.0 Type-A (for currently selected input source)
HDMI 1
1 HDMI 2.0 in with HDCP 2.2 support
1 USB 3.0 Type-B (for touch)
HDMI 2
1 HDMI 2.0 in with HDCP 2.2 support
1 USB 3.0 Type-B (for touch)Front Connector Panel 1 USB 2.0 Type-A (for the display)
1 USB 2.0 Type-A (for currently selected input source)
HDMI 3
1 HDMI 2.0 in with HDCP 2.2 support
1 USB 2.0 Type-B (for touch)Bottom Connector Panel 1 RS-232
2 RJ45
1 S/PDIF out (fixed)
1 Stereo 3.5 mm out (variable)
VGA 1
1 Stereo 3.5 mm in (for VGA in)
1 VGA in
1 USB 3.0 Type-B (for touch)Installation Requirements Interactive Display See the SMART Board MX (V2) and MX (V2) Pro series interactive displays installation and maintenance guide (smarttech.com/kb/171555) General Requirements 4K UHD
Video card that can support 3840 × 2160 resolution at 60 Hz
See Minimum requirements for Ultra High Definition or 4K on your interactive flat panelCable Requirements HDMI Maximum length: 23' (7 m) Usb 2.0 USB 2.0 certified
Hi-Speed (480 Mbps) support
Maximum length: 16' (5 m)Usb 3.0 USB 3.0 certified
SuperSpeed (5 Gbps) support
Maximum length: 9' (3 m)Storage and Operating Requirements Power Requirements 100V to 240V AC, 50 Hz to 60 Hz Standby Mode 0.5 W Normal Operating (Out-Of-Box) 109 W Operating Temperature 41–95°F (5–35°C) Storage Temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity, non-condensing Weight 102 lb. Dimensions (WxHxD) 59" x 36" x 3"
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
