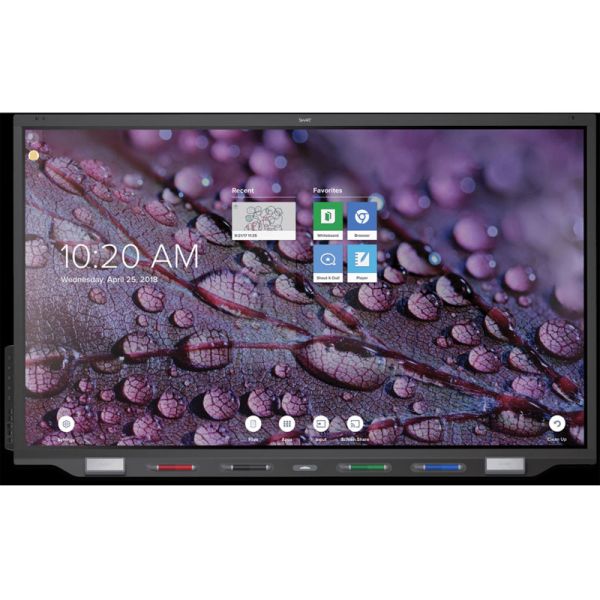

SMART SBID-7275R-P Pro Interactive Display with iQ and SMART Meeting Pro
secure transaction
- 4K ultra-high-definition LED display
- HyPr Touch with EMR technology
- Pen ID feature allows you to assign different appearances to the pens
- Multitouch capabilities, Ultra-smooth finish
- Two 15 W integrated speakers
- iQ experience embedded
- For a standard VESA 800 mm × 600 mm mounting plate
- Customizable Home screen
- Whiteboard, Browser, Screen Share, File and app libraries
- Writing and drawing over any input
- Freeze screen and screen shade, Automatic software updates
- Dimensions D: 4.25 in x H: 42.32 in x W: 69.01 in
- Weight 127.86 lb.
SMART SBID-7275R-P Pro Interactive Display with iQ and SMART Meeting Pro
Interaction Touch Technology HyPr Touch with EMR Multitouch Capabilities Up to 20 finger touch points, four pen touch points and two eraser touch points Object Awareness Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser, or palm Simultaneous Tool Differentiation Multiple users can touch the display and use pens and erasers at the same time for a natural, fully collaborative experience Pen ID Four people can write independently and simultaneously, using different colored ink Silktouch Ultra-smooth finish that allows you to use the display for hours without finger burn True Palm Rejection Palms, wrists, hands, and other objects are ignored while users write or draw Pressure Sensitivity Detection of over 1,000 levels of pressure by the pens Display Type LCD with LED back light Aspect Ratio 16:9 Optimal Resolution (HDMI inputs) 4K UHD (3840 × 2160) at 60 Hz Horizontal Frequency (typical) 135 kHz Vertical Frequency (typical) 60 Hz Brightness (maximum) 350 cd/m² Pixel Dimensions 0.4935 mm × 0.4935 mm Viewing Angle 178° Response Time (typical) 8 ms 1000BASE-T Ethernet Two external ports for a Gigabit Ethernet switched network connecting the interactive display and the OPS module to an external network and an external device, such as a computer Wi-Fi IEEE 802.11A/B/G/N/AC with 2 × 2 MIMO (both 2.4 and 5 GHz bands) Bluetooth Bluetooth 4.2 dual mode (backwards compatible with Bluetooth 2.1 + EDR) Sensors 2 Proximity
1 Ambient light
1 IR (for remote control)Audio Two 15 W integrated speakers Noise Level Up to 38 dBA Included Cables and Accessories 1 Country-specific power cable
1 USB 2.0 cable
4 Pens
2 Erasers
1 Remote control
1 WM-SBID-200 wall mountMounting Holes For a standard VESA 800 mm × 600 mm mounting plate
Lower mounting holes 17 7/8" (45.2 cm) from the bottom of the interactive displayMounting Bracket Depth Minimum depth of 2" (5.1 cm) for all components on the back of the interactive display for airflow iQ Experience iQ Experience iQ experience embedded in the display provides better performance without the need to install a separate appliance Included Apps and Features Customizable Home screen
Whiteboard
Browser
Screen Share
File and app libraries
Writing and drawing over any input
Freeze screen and screen shade
Automatic software updatesSoftware Included Software iQ Android-based embedded computing
One-year subscription to SMART TeamWorks Room edition
One SMART Meeting Pro software room license
Subscription to SMART Remote Management for length of SMART Assure warranty term
SMART Ink and SMART Product DriversConnectors Convenience Panel 2 USB 3.0 Type-A (for media)
1 USB 3.0 Type-B (for touch)
1 USB Type-C
1 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 supportConnector Panel 1 Accessory slot (for OPS devices, such as the optional SMART PCM8 OPS PC)
3 USB 3.0 Type-A (for media)
1 USB 2.0 Type-A (for service use only)
2 USB 3.0 Type-B (for touch)
3 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 support
1 HDMI 2.0 out
1 VGA in
1 Stereo 3.5 mm in
1 Stereo 3.5 mm out
1 S/PDIF out
2 RJ45
1 RS-232 in
1 RS-232 outBack of Display 1 AC power in
1 AC power outCable Requirements HDMI, USB 2.0, USB 3.0, USB Type-C Storage and Operating Requirements Power Requirements 100V to 240V AC, 50 Hz to 60 Hz Power Consumption at 77°F (25°C) Standby mode: <0.5 W, Normal operating: 135 W Operating Temperature 41–95°F (5–35°C) Storage Temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity, non-condensing Dimensions D: 4.25 in x H: 42.32 in x W: 69.01 in Weight 127.86 lb.
