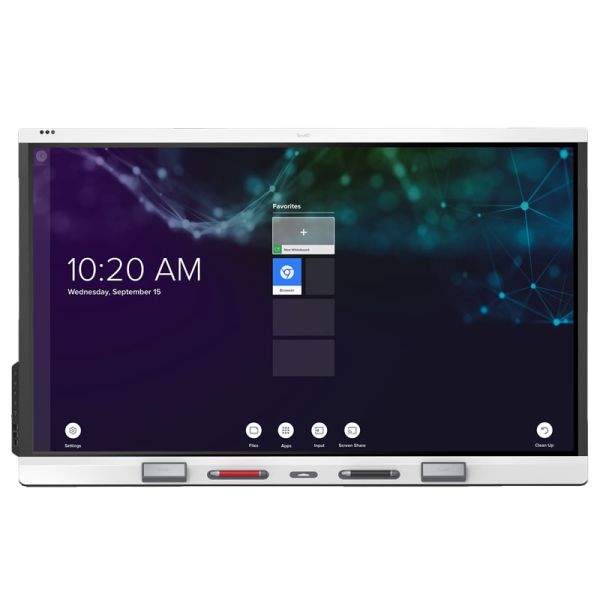

SMART SBID-6275S Interactive Display with iQ and SMART Learning Suite
secure transaction
- 4K ultra-high-definition LED display
- HyPr Touch with InGlass technology
- Pen ID feature allows you to assign different appearances to the pens
- Two 20 W integrated speakers
- Behavior adjusts automatically to the tool or object
- Ultra-smooth finish, Writing and drawing over any input
- Freeze screen and screen shade, Automatic software updates
- For a standard VESA 600 mm × 400 mm mounting plate
- Dimensions:- D: 4.87 in x H: 42.62 in x W: 68.37 in
- Weight:- 141.75 lb.
SMART SBID-6275S Interactive Display with iQ and SMART Learning Suite
Interaction Touch Technology HyPr Touch with InGlass Multitouch Capabilities Up to 20 simultaneous interaction points Object Awareness Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser or palm. Simultaneous Tool Differentiation Multiple users can touch the display and use pens and erasers at the same time for a natural, fully collaborative experience Pen ID Multiple users can write independently and simultaneously, using different colored ink ToolSense Support for virtually unlimited pen and tool recognition Silktouch Ultra-smooth finish that allows you to use the display for hours without finger burn Display Type LCD with LED back light Aspect Ratio 16:9 Optimal Resolution (HDMI inputs) 4K UHD (3840 × 2160) at 60 Hz Brightness (maximum) 350 cd/m² Pixel Dimensions 0.429 mm × 0.429 mm Viewing Angle 178° Response Time 8 ms Ambient Light Sensor Yes Proximity Sensor Yes Infrared Sensor Yes Room temperature and humidity sensors Yes 1000BASE-T Ethernet Two external ports for a 4-port Fast Ethernet switched network that connects the interactive display to a network and an external device, such as a computer Wi-Fi IEEE 802.11A/B/G/N/Ac with 2 × 2 MIMO (both 2.4 and 5 GHz bands) Bluetooth Bluetooth 4.2 dual mode (backwards compatible with Bluetooth 2.1 + EDR) Audio Two 20 W integrated speakers Noise Level Up to 32 dBA Included Cables and Accessories 1 Country-specific power cable
1 USB cable
2 Pens (red and black)
2 Eraser
1 Remote control
2 AAA batteries for the remote control
1 WM-SBID-200 wall mountMounting Holes For a standard VESA 600 mm × 400 mm mounting plate
Lower mounting holes 11" (28 cm) from the bottom of the interactive displayMounting Bracket Depth Minimum depth of 1 1/2" (3.7 cm) for all components on the back of the interactive display for airflow Accessory Holes M4 mounting points located at the top, bottom, left, and right for SMART approved accessories iQ Technology iQ Experience iQ experience embedded in the display provides better performance without the need to install a separate appliance Included Apps and Features Customizable Home screen
Whiteboard
SMART Notebook Player
Browser
Screen Share
File and app libraries
Writing and drawing over any input
Freeze screen and screen shade
Automatic software updatesSupported Languages Chinese (simplified)
Chinese (traditional)
Danish
Dutch
English
Finnish
French
German
Italian
Korean
Norwegian
Portuguese
Russian
Spanish
Swedish
Ukrainian
VietnameseSoftware Included Software iQ Android-based embedded computing
One-year subscription to SMART Learning Suite (including SMART Notebook software)
SMART Notebook basic version
Subscription to SMART Remote Management for length of SMART Assure warranty term
SMART Ink and SMART Product DriversConnectors Convenience Panel 1 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 support
2 USB 3.0 Type-A (for media)
1 USB 3.0 Type-B (for touch)Connector Panel 1 Accessory slot (for OPS devices)
1 USB 3.0 Type-A (for media)
1 USB 2.0 Type-A (for service use only)
3 USB 3.0 Type-B (for touch)
2 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 support
1 HDMI 2.0 out
1 VGA in
1 Stereo 3.5 mm in
1 Stereo 3.5 mm out
1 S/PDIF out
2 RJ45
1 RS-232 in
1 RS-232 outBack of Display 1 AC power in
1 AC power outCable Requirements HDMI, USB 2.0, USB 3.0 Storage and Operating Requirements Power Requirements 100V to 240V AC, 50 Hz to 60 Hz Power Consumption at 77°F (25°C) Standby mode: 1.9 W, Normal operating: 138 W Operating Temperature 41–95°F (5–35°C) Storage Temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity, non-condensing Dimensions D: 4.87 in x H: 42.62 in x W: 68.37 in Weight 141.75 lb.
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
