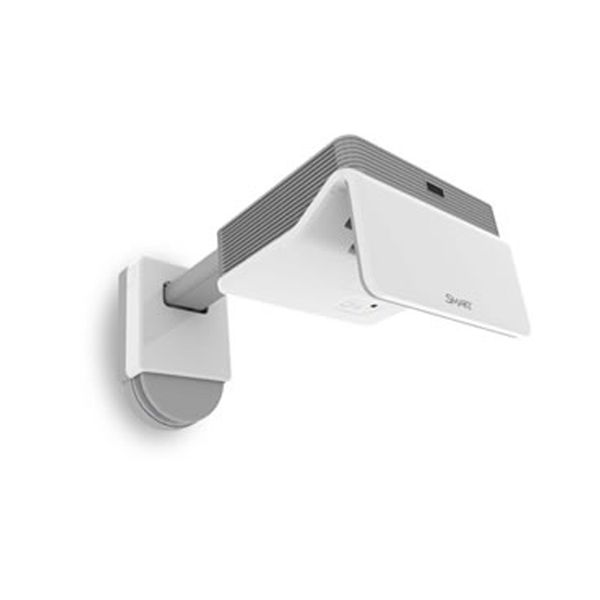

SMART Interactive SLR60wi Projector

The SLR60wi LightRaise projector includes award-winning SMART Notebook software, which sets the standard for creating, delivering and managing interactive lessons that motivate students. Through SMART Notebook, educators also have immediate access to over 60,000 learning resources on the SMART Exchange™ website. With the LightRaise projector, you can turn almost any surface, including a dry-erase whiteboard, into an interactive, small-group, collaborative learning space. The ultra-short-throw interactive projector enables you to create screen sizes of up to 100" (254 cm) on the diagonal. Complementary SMART solutions integrate with the LightRaise projector through SMART Notebook software, so you always have the option to extend and enhance your classroom solution in the future.

The LightRaise 60wi projector is the only interactive projector that provides touch and pen-enabled input, enabling two students to simultaneously write, draw and manipulate content in SMART Notebook™ collaborative learning software using a finger or the interactive pen. The LightRaise 60wi enables educators to deliver engaging and collaborative content and gives students the ability to interact with material in richer, more engaging ways.


SMART Interactive Projector SLR60wi Comes Standard With:

• 14" W x 14 3/4" H x 30 1/4"D
• Video Resolution WXGA
• Service USB
• Pen holder
• Digitizing technology
• 16:10 Aspect Ratio
• Smart Meeting Pro
• Wall Mount Bracket
• WXGA 1280 × 800 Resolution
• SMART Interactive Projector

Features:

• 2500 ANSI lumens
• Display resolution - WXGA 1280 × 800
• Contrast ratio - 3400:1
• Aspect ratio - 16:10 native
• Ultra-short-throw projector with a 0.36:1 throw ratio
• Projects image sizes from 67" to 100" (170–254 cm)
• Integrated speaker and microphone input
• HDMI input, two VGA inputs and network connection
• SMART Notebook collaborative learning software
• Immediate access to the SMART Exchange website
• Rechargeable interactive pens

SMART Interactive Projector SLR60wi Specifications Smart Board SB680, SB690, SB690i5, SB880-SMP, SB685, SBM680, SB-M685, SBX880, SBX885 Physical specifications     Size 14" W × 14 3/4" H × 30 1/4" D (35.6 cm × 37.5 cm × 76.8 cm)     Weight 28 lb. (12.7 kg)     Projector box Shipping size 20 1/4" W × 19 1/2 " H × 22 3/4" D (51.6 cm × 49.4 cm × 57.9 cm) Shipping weight 32 lb. (14.5 kg)     Boom kit box Shipping size 10" W × 8 1/2 " H × 17" D (25.4 cm × 21.6 cm × 43.2 cm) Shipping weight 12 lb. (5.5 kg)     System requirements     System requirements Windows operating systems or Mac operating system software as detailed in the SMART Notebook collaborative learning software for Windows and Mac computers release notes (smarttech.com/kb/170144). Your LightRaise 60wi interactive projector supports one computer connection on a primary display only.     USB connection USB 2.0 full-speed for HID multitouch and SMART Support.     Standard features     Software Interact with applications, perform mouse functions and write and erase digital ink using a finger or the interactive pen.     Projector features     Aspect ratio 16:10 native aspect ratio with support for 4:3, 5:4, and 16:9 ratios with scaling     Contrast ratio 3400:1     Projected image size range and ceiling clearance 1The interactive areas listed are for projecting onto a blank, vertical wall. When projected onto an existing whiteboard, the maximum diagonal area size reduces by 1 1/2" (3.8 cm) for each 1/2" (1.3 cm) of whiteboard thickness. For more information about interactive area sizes and ceiling clearances, see the LightRaise 60wi interactive projector mounting template.     Minimum interactive area on a blank wall 67" (170.2 cm) diagonal 35 1/2" H × 56 3/4" W (90.2 cm × 144.1 cm) Minimum 15 1/2" (39.4 cm) clearance required from top of image area to ceiling     Maximum interactive area on a blank wall 100" (254.0 cm) diagonal 84 3/4" H × 53" W (215.3 cm × 134.6 cm) Minimum 19 1/4" (48.9 cm) clearance required from top of image area to ceiling.     Throw ratio 0.36:1     Display resolution WXGA 1280 × 800 HD ready     Display technology The projection engine uses DLP technology by Texas Instruments™, providing BrilliantColor performance and quality Gamma 2.2 correction with Bright Room, Dark Room, sRGB, User and SMART Presentation modes.     Video system compatibility NTSC, NTSC 4.43, PAL, PAL-N, PAL-M and SECAM     Video interface compatibility HDCP compliant HDMI, Composite, VESA RGB with additional interface support for Component YPbPr and Component YCbCr inputs with the proper adapters (not included)     Video format compatibility The projector has a native 16:10 aspect ratio WXGA resolution and supports XGA, VGA,SVGA, SXGA, Quad VGA, SXGA+ and UXGA formats with scaling.     Synchronization Auto image synchronization (auto tracking, frequency, position adjustment, source detect and phase detect)     Keystone correction Corrects for projector tilt ±15 degrees     Brightness Adjustable to compensate for ambient light. Estimated at 2500 lumens at a CCT of 6500 K by the IEC method.     Lamp life 3500 hours in Standard 230 W mode. 5000 hours in Economy 190 W mode. Projector noise Includes two pens     Power requirements 38 dBA at high speed and 33 dBA at standard speed, measured using the JIS method     Speakers The projector includes two built-in 10W speakers.     Frequency range 378 Hz to 15 kHz     Speaker sensitivity 83 dB SPL at 0.5 m     Controls     Remote control Provides a method of controlling the projector and adjusting the projector settings.     External control The RS-232 control connector is configured to accept control codes from your computer or from an optional room control system. Room control is based on an RS-232 standard.     Network control RJ45 connector for network control. A network cable isn’t included.     Input/output connections     Connector Connects to     Power Mains power source     Service USB Primary computer for projector firmware upgrading     8 pin mini-FIT Jr. Light curtain         Accessory box     Shipping dimensions 33" W ×4" H × 7" D (83.8 cm × 10.2 cm × 17.8 cm)     Shipping weight 5 lb. 3 oz. (2.4 kg)     DB15F RGB video input (VGA/RBG 1) Primary computer (not included)     DB15F RGB video output (VGA/RGB Out) Optional secondary display (not included)     Stereo 3.5 mm phone jack audio input for stereo input associated with the VGA input Primary computer (not included)     Touch USB Primary computer for touch detection     Stereo 3.5 mm phone jack for line output Speakers (not included)     Balanced 3.5 mm phone jack for microphone input Microphone (not included)     RCA composite video input (and left and right RCA audio input) Video source (not included)     HDMI digital input High-definition video source (not included)     DB9 Room control     RJ45 Network (for web page management and SNMP access)     Theft protection The projector system features a padlock ring to prevent theft. A padlock isn’t included. The Kensington security slot can function as a visual and physical theft deterrent.   Interactive touch and pen features     Interactive technologyojector DViT (Digital Vision Touch) technology is used to track dual finger touch or infrared pen on any flat surface.     Pen features Active tip switch Power switch One tri-colored LED: green (operational), amber (battery charging required), red (fault) SoftTouch texture for improved finger grip USB mini-B connection for battery charging     Power requirements Approximately 90 minutes to charge the lithium-ion battery using the included 9' 10" (3 m) USB mini-B cable. A complete charge typically provides at least 20 hours of continuous use.     Pen holder The lockable pen holder protects up to two interactive pens while they charge. Magnetic mounting option     Pen charger Power adapter for direct pen charging.     Installation     Power requirements 100V–240V AC at 50 Hz–60 Hz     Power consumption 395 W maximum in Standard mode and less than 0.5 W in Standby mode (ErP compliant)     Storage and operating specifications     Storage temperature -4°F to 122°F (-20°C to 50°C) with up to 80% humidity, non-condensing     Operational temperature At normal fan speed 41°F to 95°F (5°C to 35°C) with up to 80% humidity, non-condensing from 0' to 6000' (0 m to 1800 m) At high fan speed: 41°F to 95°F (5°C to 35°C) with up to 80% humidity, non-condensing from 6000' to 6800' (1800 m to 2100 m)     Compliance and warranty     Environmental compliance EU REACH, RoHS, WEEE, Battery, Packaging and ErP, China EIP, U.S. packaging.     Regulatory certification UL (U.S./Canada), FCC, CE, CB, TUV-GS, CCC, C-Tick, GOST-R, PSB, PSE, and VCCI     Warranty eThe projector and interactive pen have a three-year limited equipment warranty. The projector lamp has a 1000-hour / one-year warranty. See warranty documents for details.     Optional accessories     CAT5-XT-1100 USB extender cable     1013730 Extended Control Panel (XCP)     1017070 HDMI Adapter (for the XCP)     1017071 VGA Adapter (for the XCP)     20-01623-20 Optional mounting hardware kit for SMART projectors
