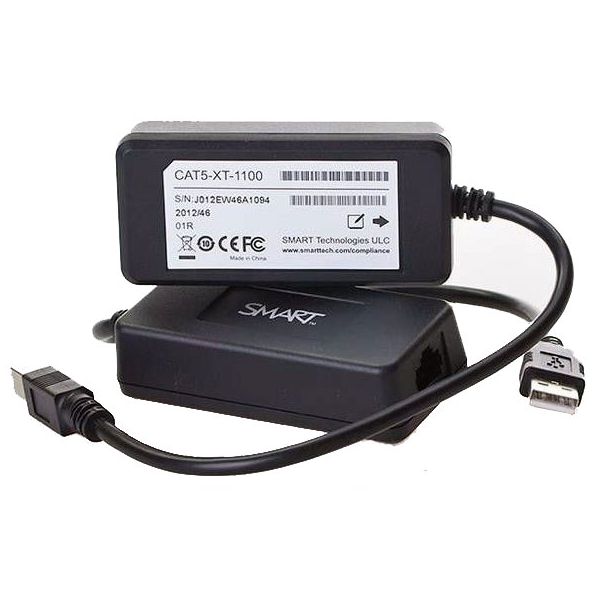

Smart CAT5-XT-1100 CAT 5 USB Extender

Smart CAT5-XT-1100 CAT 5 USB Extender

• Model: CAT5-XT-1100
  Description	CAT 5 USB extender
  Size (one extender)	13" L × 1 5/8" W × 7/8" D (33 cm × 4 cm × 2.3 cm)
  Weight	3 3/8 oz. (95 g)
  Shipping size	5" L × 5" W × 2 3/8" D (12.7 cm × 12.7 cm × 6 cm)
  Shipping weight	6 oz. (170 g)
  Maximum extension	Up to 130' (40 m)
  USB device support	Full-speed (12 Mbps) USB 1.1 device
  USB hub support	Can support up to two externally powered USB hubs connected in series with the Cat 5 USB extender. Each hub reduces the maximum extension by 40' (12 m).
  Maximum power output	175 mA when the LEX is supplied with 500 mA (USB bus powered)
  Required cable	You must supply a Cat 5, Cat 5e or Cat 6 cable (Cat 5e ScTP ground-shielded cable is recommended) to connect the REX and the LEX. It must not exceed 130' (40 m), but may be less depending on the number of hubs connected. Use plenum rated cable if required.
  LEX (local)	One USB-A plug, one RJ45 jack
  REX (remote)	One USB-B plug, one RJ45 jack
  Operating temperature	32°F to 122°F (0°C to 50°C)
  Environmental compliance	China EIP, EU RoHS and WEEE
  Regulatory certifications	CE and FCC
