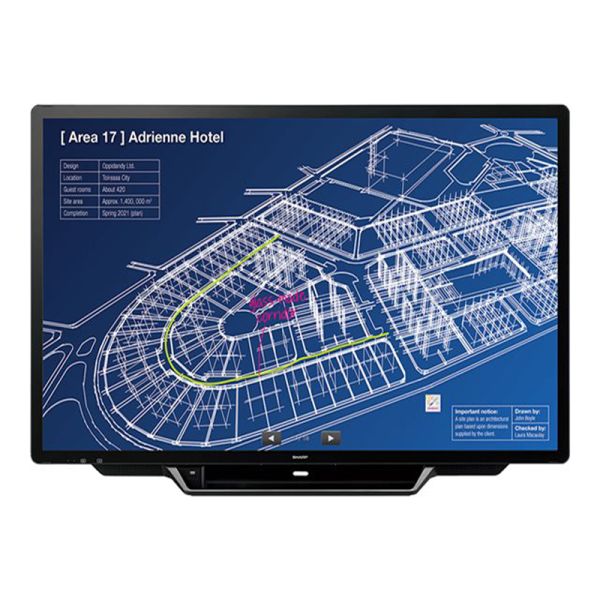

Sharp PNL705H Aquos Board Interactive Display - PNL705H
secure transaction
- Landscape / Portrait / Face-up
- LCD Panel 70" Class (69.5" diagonal) UV2
- Resolution 3,840 x 2,160 pixels
- Display color 1.06 billion colors
- Pixel pitch 0.401 x 0.401 mm
- USB (2.0 compliant) (Type B) x 2 Connection Port
- Thickness: Approx. 1.9 mm*3 Shock resistance: 130 cm*4 Protection Glass
- Wireless communication method Yes
- Vedio Analog RGB (0.7 Vp-p) [75?], HDMI, DisplayPort™ 1.2a
- Output 3.5 mm-diameter mini stereo jack x 1, DisplayPort (HDCP compatible) x 1
- Power Supply 100V – 240 V AC, 50/60 Hz
- Weight 126 lbs
Sharp PNL705H Aquos Board Interactive Display - PNL705H
Product Type LED-backlit LCD flat panel display Series Aquos Board Dimensions Without stand Combined with Touchscreen (multi touch) TV Tuner No tuner PC Interface VGA (HD-15), DisplayPort Video Interface Component, composite, HDMI HDMI Ports Qty 3 ports Diagonal Size 69.5 in USB Ports Qty 5 USB Port Yes Width 63.5 in Height 37.1 in Weight 126.1 lbs Power Consumption Operational 215 Watt Protection Protection glass Commercial Use Yes - digital signage / interactive communication Diagonal Class 70" Modes Portrait mode, landscape mode Depth 3.6 in Compliant Standards Plug and Play, DDC-2B, VESA DPMS Cables Included USB cable ¦ USB extension cable ¦ Serial cable Power Device Power supply Nominal Voltage AC 120/230 V (50/60 Hz) Min Operating Temperature 41 °F Max Operating Temperature 95 °F Humidity Range Operating 20 - 80% (non-condensing) Image Contrast Ratio 4000:01:00 Display Format 4K UHD (2160p) Response Time 6 ms Resolution 3840 x 2160 Image Aspect Ratio 16:09 Viewing Angle 176° Brightness 300 cd/m² Additional Features Capacitive touch technology, Direct Bonding Technology Viewing Angle (Vertical) 176° LCD Display Technology UV²A LCD Backlight Technology LED backlight - edge-lit Touchpoints Qty 30 Connector Type USB ¦ USB 2.0 ¦ Component video / composite video / VGA input ¦ DisplayPort input - side ¦ 2 x HDMI input - side ¦ Speakers output - bottom ¦ Audio line-out - bottom ¦ 2 x USB - bottom ¦ USB 2.0 - bottom ¦ Network - bottom ¦ DisplayPort output - bottom ¦ DisplayPort input - bottom ¦ HDMI input - bottom ¦ Audio line-in - bottom Type Standard remote Connectivity LAN LAN Protocol Fast Ethernet Flat Panel Mount Interface 400 x 400 m
