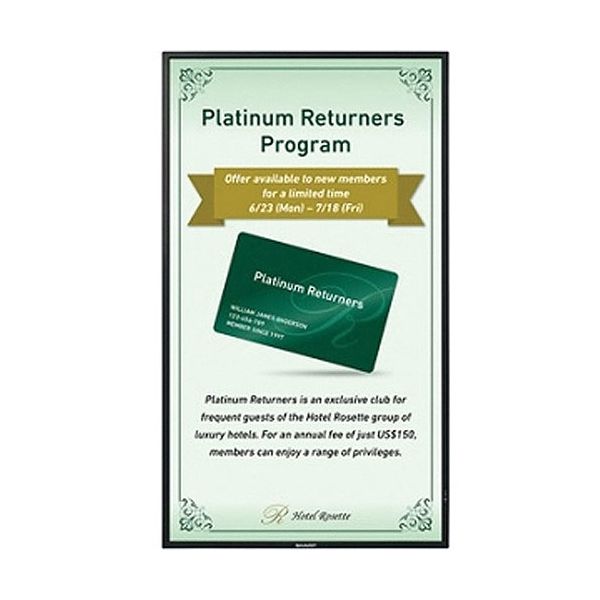

Sharp PN-Y475 47" Professional LED Display: PNY475
secure transaction
- 47" Class (46 – 15/16” Diagonal) Screen Size
- Built-In USB Media Player
- Built-In 7W Per Channel Stereo Audio System
- Brilliant High Definition (1920 x 1080) Resolution
- 450 cd/m2 Brightness
- 1,300:1 Contrast Ratio
- Edge Lit LED Backlight
- Landscape and Portrait Mode Compatible
- Dimensions (WxDxH) 42-3/8" x 2-5/8" x 24-1/2"
Sharp PN-Y475 47" Professional LED Display
Model: PN-Y475 Screen Size Class 47" Class (46-15/16" Diagonal) Bezel Width 16mm Native Display Resolution 1920 x 1080 pixels Maximum Brightness (average) 450 cd/m2 Landscape and Portrait Mode Operation Yes Fanless Architecture Yes Audio 7W + 7W Stereo with built in speakers LCD Type TFT LCD Number of Colors (approx.) 1.06 Billion Contrast Ratio 1,300:1 Aspect Ratio 16:09:00 Viewing Angle (H/V) 178º H x 178º V (CR>/=10) Active Screen Area (approx.) 40-15/16" W x 23" H Pixel Pitch 0.542 mm H x 0.542 V mm Computer Input - Video Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards) Computer Input - Synchronization Horizontal / Vertical separation (TTL: positive/negative) Computer Input - Plug & Play VESA DDC2B Power Management VESA DPMS, DVI DMPM Response Time 12 ms (gray to gray, avg) Terminals PC/AV Video Input HDMI™ x 1
USB x 1(image,video,audio)*
*Supported media formats: JPEG and PNG for still images; MP4, WMV, and TS for videos; and MP3 and WMA for audio. JPEG (.jpg) and WMV (.wmv) files can be played automatically (USB storage device sold separately)PC/AV Audio Input 3.5 mm mini stereo jack x 1
RCA pin (L/R) x 1PC Input Mini D-sub 15pin x 1
DVI-I 24 pin (HDCP compatible) x 1PC Output DVI-D 24-pin (HDCP compatible) x 1
Audio Line Output RCA pin (L/R) x 1Audio Line Output RCA pin (L/R) x 1 LAN Port 10 BASE-T/100 BASE-TX x 1 RS-232C D-sub 9-pin input x 1
D-sub 9-pin output x 1Power Power Consumption 135 W Max. Power Source 100 - 240V AC, 50/60 Hz Weight & Dimensions Dimensions Product Dimensions (wxhxd) (inches) 42-3/8" (W) x 2-5/8" (D) x 24-1/2" (H) Package Dimensions (wxhxd) (inches) 48- 29/32" W x 8 25/32" D x 32 - 17/32" H Weight Net Product Weight (lbs.) 36.4 lb (approx) Shipping Weight (lbs.) 48.5 lb (approx.) Additional Specifications UPC 074000069688 Tuner None Operating Temperature 32 ~ 104ºF (0 ~ 40ºC) Operating Humidity 20% to 80% RH (no condensation) Limited Warranty 3-Years. Covers parts, labor and backlight in both landscape and portrait mode operation. Regulatory Approvals UL 60065, FCC Class A Mounting Configuration VESA (4 points), 400 mm (15-3/4") pitch, M6 screw Remote Control Yes (LAN and RS-232C) Compatible with SDSS Sharp Digital Signage Software (optional) Yes. SDSS software delivers content program creation, registration, scheduling and distribution of pre-scheduled information on Sharp PN series displays. Operates easily with user-friendly interface
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
