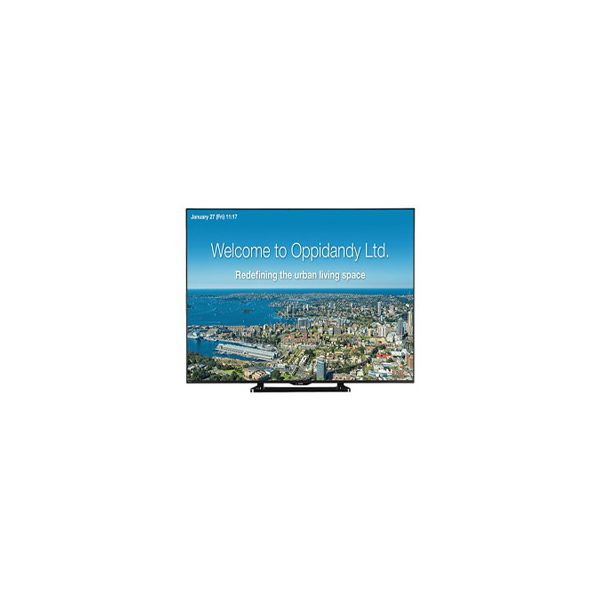

Sharp PN-LE701 70-inch Commercial LCD TV
secure transaction
- Commercial LCD TV
- 70" Nominal Size
- TFT LCD
- 5000:1 Contrast Ratio
- Resolution: HD (1920 x 1080px)
- Installation: Landscape
- Video: HDMI, Analog RGB
- Power Consumption: 180 W
- 1.07 billion colors
- Audio: RCA pin (L/R) x1, Digital audio output (optical) x 1
Sharp PN-LE701 70-inch Commercial LCD TV
Model: PN-LE701 Type Commercial LCD TV Installation Landscape LCD Panel 70" Class (69 1/2" diagonal) UV2 A*1 LCD Max. Resolution 1,920 x 1,080 pixels Max. Display Colors (approx.) 1.07 billion colors Pixel Pitch (H x V) 0.8015 x 0.8015 mm Max. Brightness 350 cd/m2 Contrast Ratio 5,000 : 1 Dynamic Contrast Ratio 4,000,000 : 1 Viewing Angle (H/V) 176°/176° (CR 10) Active Screen Area (W x H) 60 19/32" x 34 3/32" Response Time 4 ms (grey to grey, avg.) Backlight LED, edge lit Computer Input Video : HDMI/Analog RGB
Synchronization: Horizontal/vertical separation (TTL: positive/negative) Plug & Play: VESA DDC2BVideo Color System NTSC-M/PAL-N/PAL-M Analog/Digital Turner NTSC/ATSC Input Terminals HDMI x 3, Mini D-sub 15-pin x 1, Component Video RCA (Y, Cb/Pb, Cr/Pr) x 1, Composite Video RCA pin x 2, RCA pin (L/R) x 2, 3.5 mm-diameter mini stereo jack x 1, RS-232C x 1, ANT/Cable x 1, USB x 1 Output Terminals Audio: RCA pin (L/R) x 1, Digital audio output (optical) x 1 Input/Output Terminals Ethernet RJ-45 x 1 Speaker Output 10 W + 10 W Power Supply 110 – 240 V AC 50/60Hz Power Consumption 180 W Operating Temperature 0°C to 40°C Dimensions (W x D x H) (approx.) (display only) 61 35/64" x 3 7/16" x 35 53/64" Weight (approx.) (display only) 75 lbs.
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
