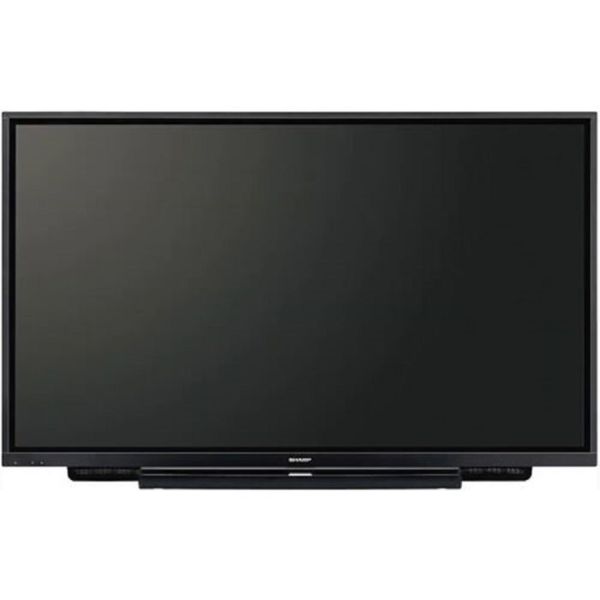

Sharp PN-L851H 85" Aquos Board Interactive Display
secure transaction
- 85" Class Interactive Display System
- Brilliant Ultra-HD (3840 x 2160) LED Direct Lit Display
- 20-Point InGlass Multi-Touch Technology
- Built-in Wireless LAN and Bluetooth connectivity
- 350 cd/m2 Brightness; 5,000:1 Contrast Ratio
- Built-In 10W per Channel Stereo Audio System
- Landscape, Portrait, Backward tilt (0 to 20, 45 degrees)
- Dimensions (W x D x H) 76.81 x 3.88 x 45.25 in
- Weight 170 lbs
Sharp PN-L851H 85" Aquos Board Interactive Display
GeneralInstallation Landscape / Portrait / Backward tilt (0 to 20, 45 degrees) LCD Panel 85" Class (84 9/16" diagonal) TFT LCD Max. Resolution 3840 x 2160 pixels Max. Display Colors (approx.) 1.06 billion colors Pixel Pitch (H x V) 0.488 x 0.488 mm Max. Brightness (average Contrast Ratio) 350 cd/m2 Contrast Ratio 5,000 : 1 Viewing Angle 178°/178° (CR GTE 10) Active Screen Area (W x H) (approx.) 73 11/16" x 41 7/16" Response Time 9.5 ms (grey to grey, avg) Backlight LED, direct lit Touchscreen Touch Technology InGlass PC Connection Port USB (2.0 compliant) (Type B) x 2 Power Supply Supplied from main unit Multi Touch 20 points Protection Glass Thickness: approx: 4 mm, Shock resistance: 130 cm Computer Input Video Analog RGB (0.7 Vp-p) [75 ohm], HDMI, DislayPort Synchronization Horizontal/vertical separation (TTL: positive/negative) Plug & Play VESA DDC2B Power Management Supported Input Terminals PC analog: Mini D-sub 15-pin x 1, HDMI (HDCP2.2 compatible, HDR10 supported) x 2, 3.5 mm-diameter mini stereo jack x 1, DisplayPort (HDCP compatible) x 1, RS-232C x 1 Output Terminals 3.5 mm-diameter mini stereo jack x 1, DisplayPort (HDCP compatible) x 1 Controller CPU Hexa Core [Arm Cortex-A72 processor (dual core) + Arm Cortex-A53 processor (quad core) Memory 4 GB Storage 32 GB External Interface LAN port (10Base-T/100Base-TX/1000Base-T), microSD card slot (microSD/microSDHC/microSDXC) x 1, USB port (3.0-compliant) x 2, USB port (2.0-compliant) x 1 Wireless LAN Compliant with IEEE802.11ac/n/a/g/b Bluetooth Compliant with version 4 (A2DP/AVRCP/GATT/GAP/HID/HOGP) USB Hub Function USB port (2.0-compliant) x 2 Expansion Slot 12V, 2.5 A (power supplied when expanding the functions with an optional part) Speaker Output Built-in 10 W + 10 W External 10 W + 10 W (6 ohm) Additional Specifications Mounting VESA (4 points), 600 x 400 mm pitch, M6 screw Power Supply 100V- 240V AC, 50/60Hz Power Consumption 310 W Environmental Conditions Operating Temperature: 5°C to 35°C
Operating Humidity: 20% to 80% RH (no condensation)Dimensions (W x D x H) (approx) (display only) 76.81" x 3.88" x 45.25" Weight (approx.) 170 lbs
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
