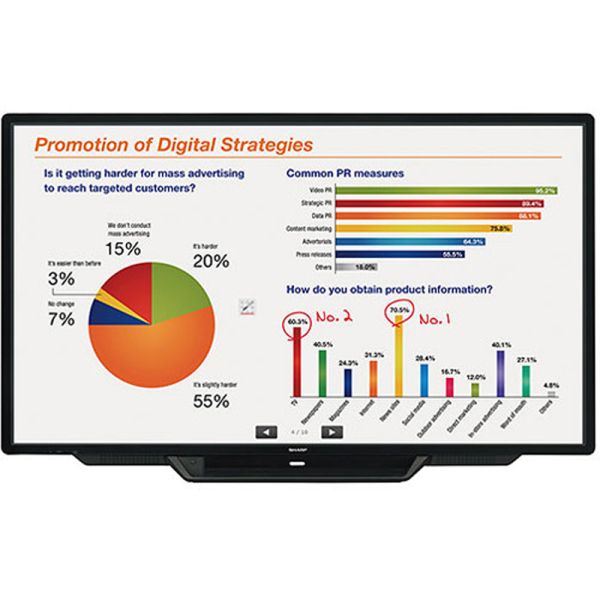

Sharp PN-L803CA Interactive Display System - PN-L803CA
secure transaction
- Installation Landscape / Portrait
- LCD Panal 80" widescreen (80" diagonal) UV2 LCD
- Maximum Resolution 1,920 x 1,080 pixels
- Maximum Display Colors 1.06 billion colors
- Pixel Pitch (H x V) 0.923 x 0.923 mm
- Viewing Angle (H/V) 176°/176° (CR 10)
- Backlight LED, full array
- PC Connection Port USB 2.0 (type B) x 2
- Multi Touch Thickness: Approx. 3.8 mm*3 Shock resistance: 130 cm*4
- Communication Wireless communication method (capacitive touch technology)
- Dimensions (WxDxH) (72) 13/16" x (3) 3/4" x (42) 3/16"
- Weight 169.8 lbs
Sharp PN-L803CA Interactive Display System - PN-L803CA
- Display
Screen Size 80" (203.2 cm) Panel Technology UV²A LCD Resolution Native, Maximum: 1920 x 1080 Display Colors 1.06 billion Pixel Pitch 0.923 x 0.923 mm Brightness Maximum: 300 cd/m² Contrast Ratio 4000:01:00 Viewing Angle (H/V) 176/176° (CR≥10) Active Screen Area 69.75 x 39.25" (117.17 x 99.7 cm) Response Time 4 ms (g-to-g, average) Orientation Landscape and Portrait Backlight LED, full array Touchscreen Information Touch Technology Capacitive Power Supply Supplied from main unit Multi-Touch Points 10 Protective Glass Thickness: Approximately 0.15" (3.8 mm)
Shock Resistance: 51.18" (130 cm)Windows System Requirements PC: PC/AT-compatible machine with USB 2.0 port and screen resolution of 1920 x 1080; CD-ROM drive required for installation
CPU: Intel Celeron 1.6 GHz or AMD Sempron 1.6 GHz or higher; Intel Core 2 Duo 2.8 GHz or AMD Athlon II x 2 2.8 GHz or higher recommended
OS: Windows 7 (32-bit/64-bit), Windows 8.x (32-bit/64-bit), Windows 10 (32-bit/64-bit)
Memory: 2 GB or more
Hard Disk: 200 MB or more free space; additional space required for saving dataConnectivity Inputs 3 x HDMI
2 x 15-pin VGA
1 x DisplayPort 1.1a
1 x RCA composite video
1 x component video
2 x 1/8" (3.5 mm) audioOutputs 1 x DisplayPort
1 x 1/8" (3.5 mm) audio
2 x spring clip terminal pairsOther Connectors 1 x USB Type-A pen adapter in
2 x USB Type-B computer in
1 x RS-232C control in
1 x Ethernet LAN
1 x Ethernet option terminalSynchronization Horizontal/vertical separation (TTL: positive/negative)
Sync on green (VGA only)
Composite sync (TTL: positive/negative)Plug & Play VESA DDC2B Power Management VESA DPMS Video Color System NTSC (3.58, 4.43 MHz), PAL, PAL60, SECAM General VESA Compatibility 600 x 400 mm Speakers Built-In: 2 x 10 W
Output: 2 x 10 W, 6 OhmsPower Requirements 100 to 240 VAC, 50/60 Hz Power Consumption 280 W Operating Environment Temperature: 41 to 95°F (5 to 35°C)
Humidity: 20 to 80% (no condensation)Dimensions (W x H x D) 72.81 x 42.19 x 3.75" (approximate) Weight 169.8 lbs
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
