Sharp PN-L803C Aquos Board Interactive Display System - 80" - PNL803C

Sharp PN-V550 55" Ultra-Slim Bezel LED Wall Monitor: PNV550

Sharp PN-C703B 70" Aquos Board Interactive Display System: PNC703B

Rating:

80 % of 100

1 Review Add Your Review

Whiteborad Interface

Touch & Pen

Screen Size

79 to 89

Availability: In stock

SKU

Sharp PN-L803C

UPC Code

74000066120

Condition

New

Compare with Similar items

Request a Quote

Details

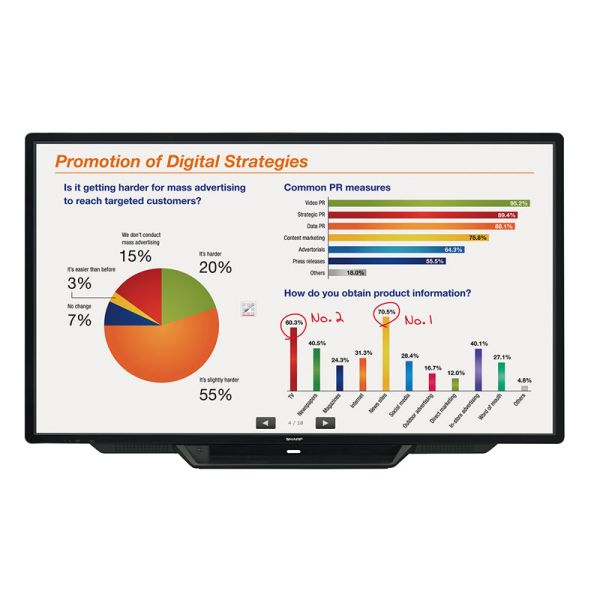

Sharp PN-L803C 80" Aquos Board Interactive Display System: PNL803C

Sharp PN-L803C comes designed to change the way you used to collaborate with your office colleagues or school classmates until now. This Interactive Display System features revolutionary 10-point capacitive multi-touch technology. This technology reduces the noise level to one-eighth of the traditional models so that the users can operate the screen with a feather-light touch. The highly sensitive LCD flat panel display is backed by UV²A display technology. It gives out full HD display and is equipped with full array LED backlight.

Sharp PN-L803C 80" Aquos Board Interactive Display System supports 1920 x 1080 resolution and 300 cd/m2 brightness rate to give unbelievably clear images to the viewers from any corner of the room. Built-in 10W per channel stereo audio system makes the PN-L803C complete with powerful sound. Sharp PN-L803C 80" Aquos Whiteboard allows simultaneous writing for up to four people. User either can write over it with their finger or included touch pen.

Reviews 1

Write Your Own Review

You're reviewing:Sharp PN-L803C Aquos Board Interactive Display System - 80" - PNL803C

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Brochure

Video

Comes Standard

Sharp PN-L803C Comes Standard With:

80" Class (80" diagonal) Interactive Display System
10-Point Capacitive Multi-Touch
Multi-User Up to 4 Simultaneous Users
Built In 10W per Channel Stereo Audio System
1920 x 1080 Resolution
UV²A Display Technology
300 cd/m2 Brightness
Full HD Display
LED Backlight Full Array
Dimensions (W x D x H) 72.8" x 3.8" x 42.2"

Specifications

Sharp PN-L803C 80" Aquos Board Interactive Display System

General
Product Type	LED-backlit LCD flat panel display
Power Consumption Operational	280 Watt
Diagonal Class	80"
Commercial Use	Yes - interactive communication
Bundled with	Sharp PN-SPCi5W7H PC and Sharp PNZL03 stand
Combined with	Touch-screen
TV Tuner	No tuner
Video Interface	HDMI
HDMI Ports Qty	3 ports
PC Interface	VGA (HD-15)
HDCP compatible	Yes
Dimensions
Width	72.8 in
Depth	3.8 in
Height	42.2 in
Weight	169.75 lbs
Display
LCD Display Technology	UV²A
Resolution	1920 x 1080
Display Format	1080p (Full HD)
LCD Backlight Technology	LED backlight - full array
Color Depth	Up to 1.06 billion colors
Image Contrast Ratio	4000:01:00
Brightness	300 cd/m2
Viewing Angle	176 degrees
Viewing Angle (Vertical)	176 degrees
Pixel Pitch	0.923 x 0.923 mm
Response Time	4 ms
commercial features	Up to 4 simultaneous users
Additional Features	Portrait mode, Certified for 24/7 Continuous Operation, landscape mode, protection glass, sync on green, anti-scratch display, 10 touchpoints, Touch Display Link 2.0 software, handwriting recognition, fingerprint proof, camera mount (7 locations)
Video Features
Analog Video Input Signals	PAL, SECAM, NTSC 3.58, NTSC4.43, PAL60
Audio System
Speaker System	2 speakers
Output Power / Total	20 Watt
External Speakers Amplifier Power (Total)	20 Watt
Additional Features	Front firing speaker(s)
Speakers	1 x main channel speaker - built-in - 10 Watt
Connections
Connector Type	1 x network ( RJ-45 ) 1 x USB ( 4 pin USB Type B ) - bottom 1 x speakers output - bottom 1 x audio line-out ( mini-phone stereo 3.5 mm ) - bottom 1 x DisplayPort output ( 20 pin DisplayPort ) - bottom 1 x USB - front 1 x component video / composite video / VGA input ( 15 pin HD D-Sub (HD-15) ) - bottom 1 x DisplayPort input ( 20 pin DisplayPort ) - bottom 1 x HDMI input ( 19 pin HDMI Type A ) - bottom 1 x audio line-in ( mini-phone stereo 3.5 mm ) - bottom 1 x serial - side 1 x USB ( 4 pin USB Type B ) - side 1 x VGA input ( 15 pin HD D-Sub (HD-15) ) - side 2 x HDMI input ( 19 pin HDMI Type A ) - side 1 x audio line-in ( mini-phone stereo 3.5 mm ) - side
Miscellaneous
Included Accessories	2 AAA batteries, 2 AA batteries, eraser, 2 touch pens, Sharp Pen Software, pen tray, blank sticker, touch pen adapter, 7 x cable clamps
Cables Included	USB cable - 10 ft USB cable - 6 ft Serial cable
Compliant Standards	Plug and Play, DDC-2B, VESA DPMS
Power
Power Device	Power supply
Nominal Voltage	AC 120/230 V ( 50/60 Hz )
Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	95 °F
Humidity Range Operating	20 - 80% (non-condensing)
