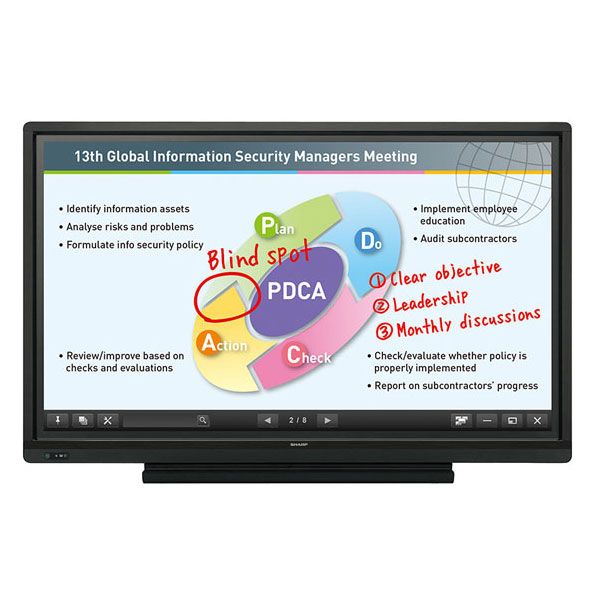

Sharp PN-L603B Professional LED Touch Screen Monitor: PNL603B

Sharp PN-L603B Comes Standard With:

• 60" Class (60-1/16" diagonal) Interactive Display System - 1920 x 1080 HD Resolution
• Annotate, Create, and Present Content
• Up to 4 Simultaneous Users with Interactive Touch Pens
• View, Share, Collaborate with up to 50 Mobile devices
• Multiple Gestures with 10-Point Touch Screen
• Customizable Windows PC*
• Business-Class MFP Connectivity
• Web-Conferencing Options
• Additional Specifications

• Installation	Landscape
  Screen Size	60" (152.4 cm) class (60.06" (153.9 cm) diagonal)
  LCD Type	UV²A LCD
  Number of Colors	Approximately 1.06 billion
  Aspect Ratio	16:09
  Video System	NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
  Display Resolution	Native: 1920 x 1080
  Pixel Pitch (HxV)	0.692 x 0.692 mm
  Brightness	300 cd/m²
  Contrast Ratio	3000:01:00
  Viewing Angle (H/V)	160 x 160° (CR=10)
  Active Screen Area	W x H: 52.3 x 29.4" (132.8 x 74.6 cm) approximately
  Response Time	6 ms (gray to gray, average)
  Backlight	LED, edge lit
  Touch Screen Information
  Touch Technology	IR (infrared blocking detection method)
  PC Connection	Port: 2 x Type B USB 2.0
  Power Supply	Supplied from main unit
  Multi-Touch	10 points
  Glass	Protection: Thickness: Approximately 0.1" (3.0 mm) Shock Resistance: 51.1" (130 cm) 1 Please Note: Including AG ?lm on the front and AR ?lm on the back. Approximate distance at which the glass panel can withstand the impact of a 17.6 oz (500 g) iron ball dropped on its center. close
  Computer Inputs
  Video	Analog RGB (0.7 Vpp) (75 ?), DisplayPort 1.1a
  Synchronization	Horizontal/vertical separation (TTL: positive/negative), sync on green (D-Sub 15-pin only), composite sync (TTL: positive/negative)
  Plug & Play	VESA DDC2B
  Power Management	VESA DPMS
  Terminals
  Input	PC analog: 2 x Mini D-sub 15-pin 3 x HDMI (HDCP and 1080p compatible, PC/AV signal compatible) 2 x 3.5 mm-diameter mini stereo jack 1 x Video 1 x Component video 1 x DisplayPort (HDCP compatible, PC signal compatible) 2 Please Note: Analog PC, video, and component video are switchable (on bottom interface); use the menu to select. Video and component video connections require conversion cable via mini D-Sub 15-pin jack. close
  Output	1 x 3.5 mm-diameter mini stereo jack 1 x DisplayPort (HDCP compatible) 10 W + 10 W stereo with built-in front facing speakers One terminal for 10 W + 10 W (6 O) external speakers
  Controller
  Remote Control	Via LAN and remote control unit (included)
  General
  Mounting	VESA (4 points), 400 x 200 mm pitch, M6 screw
  Power Consumption	185 W maximum
  Power Source	100 to 240 VAC, 50/60 Hz
  Windows System Requirements
  PC	PC/AT compatible machine with USB 2.2 port and screen resolution of 1920 x 1080
  CPU	Intel Celeron 1.6 GHz or AMD Sempron 1.6 GHz or higher (Inter Core 2 Duo 2.8 GHZ or AMD Athlon II x 2 2.8 GHz or higher recommended)
  OS	Windows 7/8/8.1 (32/64-bit)
  Memory	2 GB or more
  Hard Disk Space	200 MB or more free space (additional space required for saving data)
  Environmental
  Operating Temperature	41 to 95°F (5 to 35°C)
  Operating Humidity	20 to 80% RH (no condensation)
  Regulatory Approvals	UL, cUL, FCC, ICES
  Mechanical
  Dimensions (W x H x D)	56.6 x 3.7 x 35.0" (143.7 x 9.4 x 88.9 cm)
  Weight	Approximately 101.5 lb (46.0 kg)
