Sharp PN-E803 80" Professional LED Display: PNE803
secure transaction
- 80” Class (80” Diagonal) Screen Size
- Built-In 10W Per Channel Stereo Audio System
- Landscape and Portrait Mode Compatible
- UV²A LCD Panel Technology
- 1920x1080 Resolution
- LED Full-Array Backlight
- 5000 : 1 Contrast Ratio
- 470 cd/m² Brightness
- Dimensions (WxHxD) 72.8" x 3.7" x 42.2"

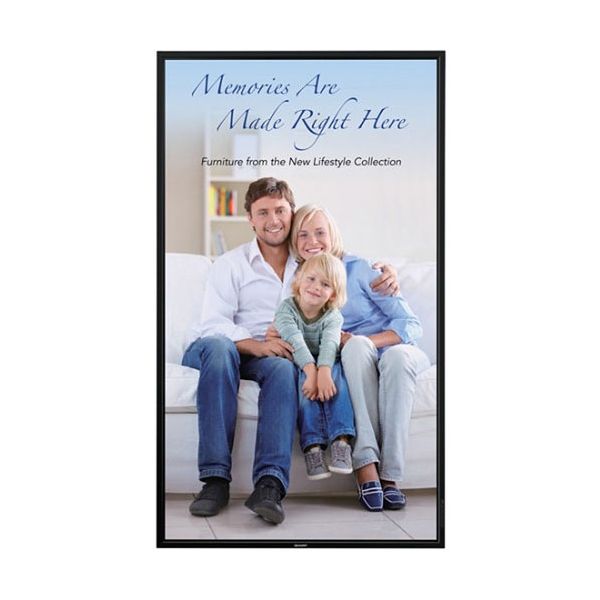

Sharp PN-E803 80" Professional LED Display
Display Size 80" (203.2 cm) diagonal Panel Technology UV²A LCD Maximum Resolution 1920x1080 Display Colors 1.06 billion Pixel Pitch 0.923 x 0.923 mm Brightness Maximum: 470 cd/m² Contrast Ratio 5000:01:00 Viewing Angle (H/V) 176/176° (CR=10) Active Screen Area 69.75 x 39.25" (177.1 x 99.6 cm) Response Time 4 ms (grey to grey, average) Orientation Landscape or Portrait Backlight LED, full-array Computer Inputs Video Analogue RGB (0.7 Vpp) 75 Ohm, Digital (conforms to DVI 1.0 standards), DisplayPort Synchronization Horizontal/vertical separation (TTL:positive/negative), sync on green, composite sync (TTL:positive/negative) Plug & Play VESA DDC2B Power Management VESA DPMS, DVI DMPM Video Color System NTSC (3.58 MHz, 4.43 MHz), PAL, PAL60, SECAM Connectivity Inputs 1 x DisplayPort
1 x DVI-I
1 x VGA
2 x HDMI
2 x 1/8" (3.5 mm) stereo audio
1 x RS-232COutput 1 x DisplayPort (supports video signals only)
1 x DVI-D
1 x 1/8" (3.5 mm) stereo audio
1 x RS-232COther Ports 1 x LAN port General VESA Compatibility 600 x 400 mm (23.63 x 15.75") Speakers 2 x 10 W Power Requirements 100 to 240 VAC, 50/60 Hz Power Consumption 280 W ENERGY STAR No Operating Temperature 32 to 104°F (0 to 40°C) Operating Humidity 20 to 80% (no condensation) Dimensions (WxHxD) Display Only (Approximate): 72.8 x 3.7 x 42.2" (185.0 x 9.6 x 107.2 cm) Weight 125.7 lb (57.0 kg) Packaging Info Package Weight 180.0 lb Box Dimensions (LxWxH) 81.0 x 50.0 x 14.5"
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
