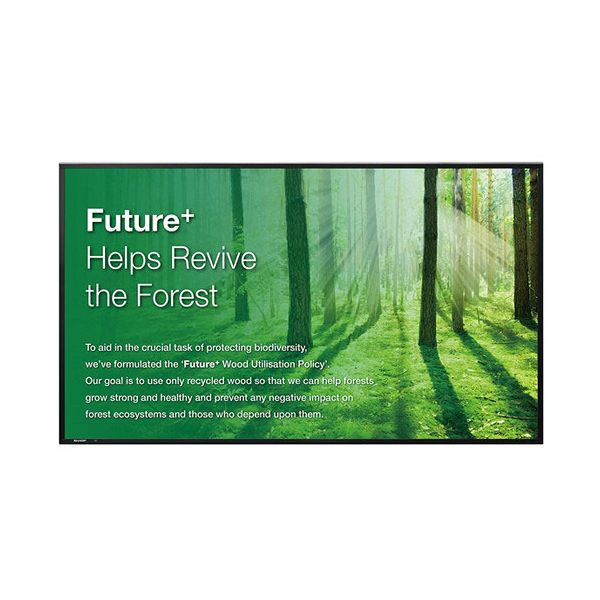

Sharp PN-E703 70" Professional LED Display: PNE703
secure transaction
- 70" Class (69 – 1/2" Diagonal) Screen Size
- Brilliant High Definition (1920 x 1080) LED Display
- Built-in 10W per Channel Stereo Audio System
- Landscape and Portrait Mode Compatible
- 4000:1 Contrast Ratio
- 450 cd/m² Brightness
- Full HD Commercial LED Display
- UV²A Technology
- Edge-Lit LED Backlight
- Dimensions (DxHxW) 1.6" x 36.1" x 62.1"
Sharp PN-E703 70" Professional LED Display
Audio System Output Power Total: 20 Watt Speaker System: 2 speakers Connections Connector Location: Bottom Connector Type: 20 pin DisplayPort Qty: 1 Type: DisplayPort input Type: DisplayPort output Connector Type: 29 pin DVI Type: DVI-I input Connector Type: 24 pin digital DVI Type: DVI-D output Connector Type: Mini-phone stereo 3.5 mm Qty: 2 Type: Audio line-in Connector Location: Side Connector Type: 19 pin HDMI Type A Type: HDMI input Connector Type: 15 pin HD D-Sub (HD-15) Type: VGA input Type: Audio line-out Connector Type: 9 pin D-Sub Type: Serial input Type: Serial output Connector Type: RJ-45 Type: Network Dimensions & Weight Depth: 1.6 in Height: 36.1 in Weight: 94.8 lb Width: 62.1 in DVD Type: None Environmental Parameters Humidity Range Operating: 20 - 80% (non-condensing) Max Operating Temperature: 104 °F Min Operating Temperature: 32 °F Header Brand: Sharp Manufacturer: Sharp Electronics Model: PN-E703 Product Line: Sharp Internal Storage Type: None Miscellaneous Color Category: Black Compliant Standards: DDC-2B , DVI DMPM , Plug and Play , VESA DPMS Flat Panel Mount Interface: 200 x 200 mm Network & Internet Multimedia Connectivity: LAN Power Device Frequency Required: 50/60 Hz Nominal Voltage: AC 120/230 V Power Consumption Operational: 225 Watt Type: Power supply Radio Type: None Speaker System Details Nominal (RMS) Output Power: 10 Watt Speaker Form Factor: Built-in Speaker Qty: 2 Speaker Type: Main channel speaker Television Additional Features: Certified for 24/7 Continuous Operation , Landscape mode , Mirror Display Mode , Picture by picture (no tuner) , Picture in picture (no tuner) , Portrait mode , Sync on green Analog Video Input Signals: NTSC 3.58 , NTSC4.43 , PAL , PAL60 , SECAM Brightness: 450 cd/m2 Color Depth: Up to 1.06 billion colors Commercial Targeting: Digital signage Commercial Use: Yes Diagonal Class: 70 in Diagonal Class (metric): 178 cm Diagonal Size: 69.5 in Diagonal Size (metric): 176.5 cm Display Format: 1080p (Full HD) HDCP Compatible: Yes HDMI Ports Qty: 2 Image Contrast Ratio: 4000:01:00 LCD Backlight Technology: LED backlight LCD Display Technology: UV²A LED Backlight Type: Edge-lit PC Interface: DisplayPort , DVI , VGA (HD-15) Pixel Pitch: 0.802 x 0.802mm Resolution: 1920 x 1080 Response Time: 6 ms Type: LED-backlit LCD flat panel display Video Interface: HDMI Viewing Angle: 176 degrees Viewing Angle (Vertical): 176 degrees TV Tuner Tuners Configuration: No tuner TV Tuner Presence: No
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
