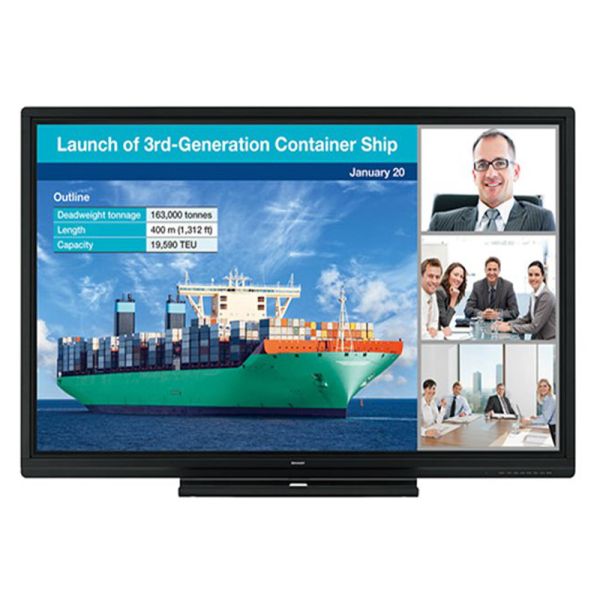

Sharp PN-C805B Interactive Display System - PN-C805B
secure transaction
- Installation Landscape
- Screen Size 80" (203.2 cm)
- LCD Type UV²A LCD
- Duty Cycle 16 hours/day
- Active Screen Area 69.75 x 39.25 (177.17 x 99.70 cm)
- PC Connection Port: USB 2.0 Type-B
- Multi-Touch 10 points
- Max Resolution 1920 x 1080 pixels
- Pixel Pitch 0.923 x 0.923
- Speaker Output 10 W + 10 W
- Power Supply 100-240 VAC, 50/60 Hz
- Dimensions (188.3 x 12.7 x 113.8 cm)
- Weight 174.2 lb
Sharp PN-C805B Interactive Display System - PN-C805B
- Installation
Landscape Screen Size 80" (203.2 cm) LCD Type UV²A LCD Max Resolution 1920 x 1080 pixels Max. Display Color 1.07 billion colors Pixel Pitch 0.923 x 0.923 Duty Cycle 16 hours/day Brightness 350 cd/m² Contrast Ratio 5000:01:00 Viewing Angle 176 x 176° (CR=10) Active Screen Area 69.75 x 39.25 (177.17 x 99.70 cm) Response Time 4 ms (gray to gray, average) Backlight LED, direct lit Color System Video: NTSC (3.58 MHz) / NTSC (4.43 MHz) / PAL / PAL60 / SECAM Touchscreen Information Touch Technology IR (infrared blocking detection method) PC Connection Port: USB 2.0 Type-B Power Supply Supplied from USB port Multi-Touch 10 points Glass Thickness: Approx. 3.1 mm
Shock Resistance: 51.1" (130 cm)Inputs & Outputs Computer Input Video: Analog RGB (0.7 Vp-p) 75 Ohms
Synchronization: Horizontal/vertical separation (TTL: positive/negative)
Plug & Play: VESA DDC2BInputs 1 x 15-pin D-sub mini
3 x HDMI (HDCP and 1080p compatible, PC / AV signal compatible)
1 x 3.5 mm mini stereo phone jack
1 x RCA audio (L/R)
1 x RCA component/composite video
1 x RS-232C 9-pin D-subOutput 1 x 3.5mm mini stereo phone jack Speaker Output 10 W + 10 W General Mounting VESA (4 points), 600 x 400 mm, M6 screw Power Supply 100-240 VAC, 50/60 Hz Power Consumption 270 W Operating Temperature 41 to 95°F (5 to 35°C) Operating Humidity 20 to 80% RH (no condensation) Dimensions 74.13 x 5.00 x 44.81" (188.3 x 12.7 x 113.8 cm) Weight 174.2 lb (79 kg)
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
