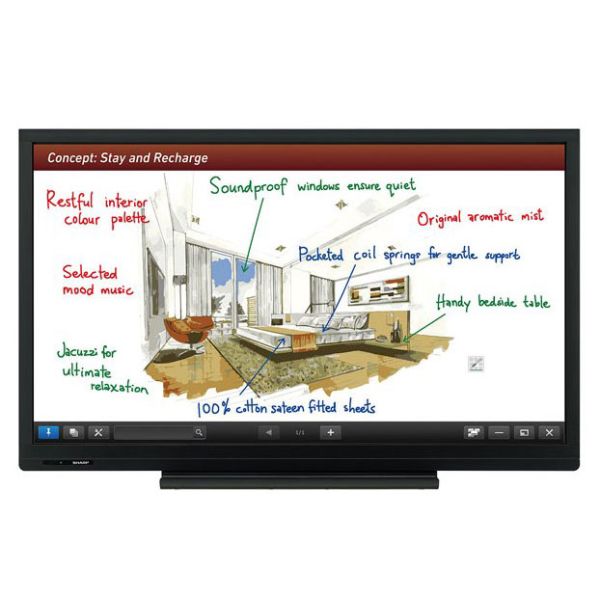

Sharp PN-C603D 60" Aquos Board Interactive Display System: PNC603D
secure transaction
- 60" Class (60.1" diagonal) Interactive Display System
- 300 cd/m2 Brightness
- 6-Point Multi-Touch Screen
- 1920 x 1080 Resolution
- USB 2.0 PC Connection Port
- Full HD Display
- LED Edge Lit Backlight
- Built-In 10W per Channel Stereo Audio System
- Dimensions (WxDxH) 55 7/16" x 3 3/4" x 34 3/16"
Sharp PN-C603D 60" Aquos Board Interactive Display System
Model: PN-C603D Installation Landscape LCD Panel 60" Class (60.1" diagonal) UV2A *1 LCD Max. Resolution 1,920 x 1,080 pixels Max. Display Colors (approx.) 16.77 million colors Pixel Pitch (H x V) 0.692 x 0.692 mm Max. Brightness (average) 300 cd/m2 Contrast Ratio 3,000 : 1 Viewing Angle (H/V) 160°/160° (CR 10) Active Screen Area (W x H) (approx.) 52 5/16" x 29 7/16" Response Time 6 ms (grey to grey, avg.) Back light LED, edge lit Touchscreen Touch Technology IR (infrared blocking detection method) PC Connection Port USB 2.0 Power Supply Supplied from USB port Multi Touch 6 points Protection Glass Shock resistance: 130 cm Touch Pen Function Button N/A (passive pen) Computer Input Video Analog RGB (0.7 Vp-p) [750] Synchronization Horizontal/vertical separation (TTL: positive/negative) Plug & Play VESA DDC2B Video Color System NTSC (3.58 MHz) / NTSC (4.43 MHz) / PAL / PAL60 / SECAM Input Terminals PC analog: Mini D-sub 15-pin x 1, HDMITM x 3 (HDCP and 1080p compatible, PC / AV signal compatible), 3.5 mm-diameter mini stereo jack x 1, RCA pin (L/R) x 2, video: RCA pin x 2 *6 , component video: RCA pin x 1 *6 , RS-232C D-sub 9-pin x 1 Output Terminals Audio: RCA pin (L/R) x 1 Speaker Output 10 W + 10 W Mounting VESA (4 points), 400 mm pitch, M6 screw Power Supply 100V – 240V AC, 50/60 Hz 100V – 120V AC, 50/60 Hz Power Consumption 180 W Environmental Conditions Operating Temperature 5 0 C to 35 0 C Operating Humidity 20% to 80% RH (no condensation) Dimensions (WxDxH) (approx.) (display only) 55 7/16" x 3 3/4" x 34 3/16" Weight (approx.) 94.8 lb Main Accessories AC power cord (3-pin), remote control unit, batteries (AA size x 2), Pen Software CD-ROM, set-up manual, cable clamps x 2, USB cable, eraser, pen tray, touch pen (without function button), blank sticker
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
