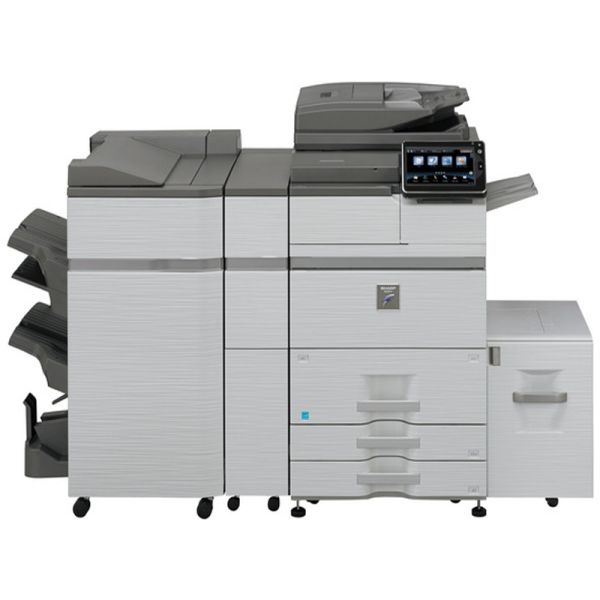

Sharp MX-M654N Monochrome Copier : MX-M654N
secure transaction
- Control panel display 10.1-inch colour LCD touchscreen
- Paper size Max. A3 wide (12" x 18") , min. A5 (5 1/2" x 8 1/2")*2
- Paper capacity (80 g/m2) Standard 3,200 sheets, Maximum 6,700 sheets
- Warm-up time*4 20 sec
- Memory Standard 3GB (copy/print shared) 320GB HDD*5, Option 1GB
- Power requirements Rated local AC voltage ±10%, 50/60 Hz
- Resolution Scan 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi*8
- Resolution Print 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
- Interface Std/Opt USB 2,0, 10Base-T, 100Base-TX, 1000Base-T
- Dimensions (W x D x H)*6 (26 1/16" x 30 23/64" x 47 61/64")
- Weight (approx.) 365.9 lbs
Sharp MX-M654N Monochrome Copier : MX-M654N
Engine speed A4 (8 1/2" x 11")*1 Max. 75/65 ppm
A3 (11" x 17") Max. 37/34 ppmControl panel display 10.1-inch colour LCD touchscreen Paper size Max. A3 wide (12" x 18") , min. A5 (5 1/2" x 8 1/2")*2 Paper capacity (80 g/m2) Standard 3,200 sheets (2,100-sheet tray, 500-sheet tray x 2, and 100-sheet multi-bypass tray)
Maximum 6,700 sheets (3,200 sheets & optional 3,500-sheet tray)Paper weight*3 Tray 1&2 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond)
Tray 3&4 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover)
Multi-bypass tray 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover)
Large capacity tray (MX-LC15, MX-LC16) 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover)Warm-up time*4 20 sec. Memory Standard 3GB (copy/print shared) 320GB HDD*5
Option 1GBPower requirements Rated local AC voltage ±10%, 50/60 Hz Power consumption Max. 1.84 kW (220 to 240V), max. 1.92 kW (110 to 127V) Dimensions (W x D x H)*6 26 1/16" x 30 23/64" x 47 61/64" Weight (approx.) 365.9 lbs Copier Original paper size Max. A3 (11" x 17") First copy time*7 3.5/3.9 sec. Continuous copy Max. 9,999 copies Resolution Scan 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi*8
Print 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpiGradation Scan 256 levels
Print 256 levels (equivalent)Zoom range 25% to 400% (25% to 200% using DSPF) in 1% increments Preset copy ratios Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) Network Colour Scanner Scan method Push scan (via control panel), pull scan (TWAIN-compliant application) Scan speed*9 Colour & B/W One-sided: Max. 100 originals/min.
Two-sided: Max. 200 originals/min.Resolution Push scan 100, 150, 200, 300, 400, 600 dpi
Pull scan 75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting*10File formats TIFF, PDF, PDF/A, encrypted PDF, compact PDF*11, JPEG*11, XPS Scanner utility Sharpdesk Scan destinations Scan to e-mail/desktop/FTP server/network folder (SMB)/USB memory Document Filing Document filing capacity*12 Main and custom folders: 20,000 pages or 3,000 files
Quick file folder: 10,000 pages or 1,000 filesStored jobs*13 Copy, print, scan, fax Storage folders Quick file folder, main folder, custom folder (max. 1,000 folders) Confidential storage Password protection Network Printer Resolution 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi Interface USB 2.0, 10Base-T/100Base-TX/1000Base-T Supported OS Windows Server® 2003, Windows Server® 2003 R2, Windows Server®2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Vista®, Windows® 7, Windows® 8.1, Windows® 10, Network protocols TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk) Printing protocols*14 LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, EtherTalk printing, IPP PDL Standard PCL 6 emulation, Adobe® PostScript® 3™
Option XPS*15Available fonts 80 fonts for PCL, 139 fonts for Adobe PostScript 3 Facsimile (optional MX-FX11 required) Compression method MH/MR/MMR/JBIG Communication protocol Super G3/G3 Transmission time Less than 3 seconds*16 Modem speed 33,600 bps to 2,400 bps with automatic fallback Transmission resolution From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) Recording size A3 to A5 (11" x 17" to 5 1/2" x 8 1/2") Memory 1GB Greyscale levels Equivalent to 256 levels
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
