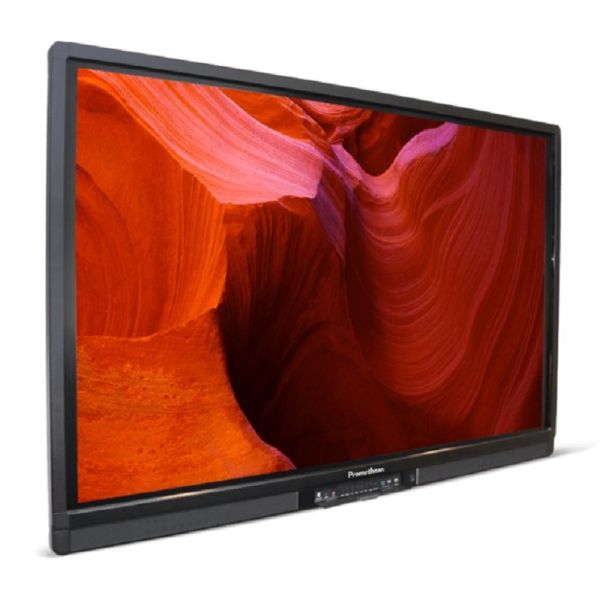

Promethean VTP2-75-4K ActivPanel i-Series (75" 4K)
secure transaction
- Diagonal Size Available in 65" HD, 75" 4K
- Screen Type TFT LCD (Direct LED Backlight)
- Aspect Ratio 16:09
- Display Area 75" 4K: 1650 × 928 mm(65 x 36.5 in)
- Resolution 75” 4K (3840 x 2160 px @ 60 Hz)
- Response Time 8 ms
- Refresh Rate 60 Hz
- Display Colors 1.07 Billion
- Contrast Ratio 4000:01:00
- Continuous Touch Points Up to 10
- Touch Resolution 32,768 x 32,768 px
- HDMI In x3
- USB Touch x2
- Brightness 350 cd/m2 typical
- Glass Hardness 7 Mohs, 9H pencil
- Glass Type Heat-tempered, Anti-Glare
- Power Requirements 100V - 240V AC
- Product Dimensions 69.6 x 42 x 4.48 in
- Net Weight 59 kg
Promethean VTP2-75-4K ActivPanel i-Series (75" 4K)
Description ActivPanel i-Series (75" 4K) Display Diagonal Size 75" 4K Screen Type TFT LCD (Direct LED Backlight) Aspect Ratio 16:09 Display Area 1650 × 928 mm(65 x 36.5 in) Resolution 4K (3840 x 2160 px @ 60 Hz) Response Time 8 ms Refresh Rate 60 Hz Display Colors 1.07 Billion Contrast Ratio 4000:01:00 Brightness 350 cd/m2 typical Glass Hardness 7 Mohs, 9H pencil Glass Type Heat-tempered, Anti-Glare Freeze Screen Yes Blank Screen Yes Connectivity HDMI In x3 USB Touch x2 VGA In x1 VGA Audio In x1 YPbPr x1 CVBS x1 Mic In (3.5 mm) x1 Headphone x1 USB 2.0 x2 RS232 Serial x1 OPS Slot x1 (with dedicated front USB 2.0 x2) Audio Speakers Front-facing stereo speakers Power 2 x 15 W Power Power Requirements 100V - 240V AC Power Consumption (Normal) <= 300W Power Consumption (Standby) <= 0.5 W Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -15°C to 55°C (-5°F to 131°F) Operating Humidity 20% to 80% non-condensing humidity Storage Humidity 20% to 90% non-condensing humidity Interactivity Continuous Touch Points Up to 10 Gestures and Edge Swipes Windows Supported Touch Technology Infrared Touch Resolution 32,768 x 32,768 px Touch Accuracy +-2 mm Max Touch Response Time 15 ms Tracking Rate 5 m/s Scan Rate 7 ms Compatibility* Windows 7 to 10
OS X 10.8 to 10.11
macOS Sierra 10.12.1 or later
Linux Ubuntu 16.04 LTS
Chrome OS™Pen Pens Included x1 Pen Type Battery-Less (not differentiated from touch) Pen Holder Pen holder attached to ActivPanel Pen Tip Diameter 8 mm Optional stands & accessories Fixed Wall Mount (Vesa) Available in all markets Height-Adjustable Wall Mount Available in specific markets Height-Adjustable Mobile Stand Available in specific markets Non-Adjustable Mobile Stand Available in all markets ActivSoundBar Add the powerful, high-quality sound bar Android Module Available in specific markets; Includes Android 6.0 Marshmallow, CPU Realtek RTD1295 Quad Core up to 1.4 GHz, GPU ARM T820, up to 4K @ 60Hz, 2 GB DDR4 RAM, 16 GB Internal Storage Windows Module Available in specific markets; Intel Core™ i5 Dual, 8 GB DDR4 RAM, 256 GB SSD, Wi-Fi 802.11 AC (2x2), 4K @ 60 HzTwo options are available: 1. Windows 10 IoT pre-installed; 2. No operating system installed. Both options include an External Android (ActivConnect G) with pre-loaded software. Minimum order quantity required for both models. Physical Specifications 75" 4K (Without Mount) Product Dimensions 69.6 x 42 x 4.48 in Net Weight 130 lbs
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
