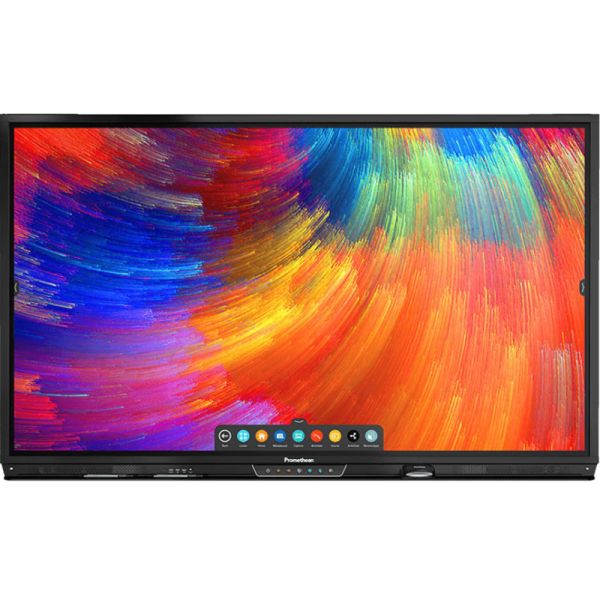

Promethean AP7-B86-NA-1 ActivPanel Titanium 86" Interactive Display
secure transaction- 4K UHD (3840 x 2160 @ 60 Hz) resolution
- TFT LCD (Direct LED Backlight) screen type
- 86" Diagonal size
- Packed with enhanced interactivity, productivity, and engagement tools
- Delivers a high level of performance
- Helps teachers and students make the most out of every moment in the classroom
- Unified menu
- Vellum writing technology
- 20 simultaneous touch points
- Dimensions 79.3 x 48.5 x 4.3 in
- Weight 165 lbs
Promethean AP7-B86-NA-1 ActivPanel Titanium 86" Interactive Display
DISPLAY Diagonal Size 86" 4K Screen Type TFT LCD (Direct LED Backlight) Aspect Ratio 16.9 Display Area 86" 4K: 1895 x 1066 mm (74.6 x 41.9 in) Display Colours 1.07 Billion Resolution 4K UHD (3840 x 2160 @ 60 Hz) Response Time 8 ms Refresh Rate 120 Hz LCD Viewing Angle 178° Brightness 86" 4K: 400 cd/m2 Contrast Ratio 4000:1 Ambient Light Sensor Yes Glass Hardness 9H (pencil), 7 (Mohs) Glass Type Heat-tempered, Anti-Glare INTERACTIVITY Angled Center Console Yes, with Power, Volume Control, Menu, Freeze, No Touch, Source Selection Buttons Vellum Writing Technology Yes Continuous Touch Points 20 Touch Resolution 32768 x 32768 px Response Time Upto 5 ms Touch Accuracy 1 mm Tracking Rate 6 m/s Scan Rate 200 Hz Gestures and Edge Swipes Windows Supported Eraser Included (block eraser) 1 Pens Included 4 with Rear Erasing Feature Pen Type Battery-less Pen Pen Holder Integrated Full-length Pen Tray Pen Tip Diameter 3 mm Pen and Touch Differentiation Yes Pen Identities 2 Palm Detection Yes Annotation Over Any Source Yes Classroom Essential Apps Included Compatibility Windows 7 to 10
OS X 10.8 to 10.11
macOS Sierra 10.12.1 or later
Linux Ubuntu 18.04 LTS
Chrome OSPOWER Power Requirements 100V - 240V AC Power Consumption (Normal) 86" 4K: Upto 340W Power Consumption (Standby) Upto 0.5 W Ultra-Quiet Fanless Design Yes ENVIRONMENTAL Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -15°C to 55°C (-5°F to 131°F) Operating Humidity 20% to 80% non-condensing humidity Storage Humidity 20% to 90% non-condensing humidity PHYSICAL SPECIFICATIONS Panel Dimensions 86" 4K: 2014 x 1231 x 109 mm (79.3 x 48.5 x 4.3 in) Net Weight 86" 4K: 75 kg (165 lbs) Wall Mount Dimensions 1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in) VESA Mount Point 86" 4K: 800 x 400 mm (31.5 x 15.7 in) CONNECTIVITY OPS Slot 1 HDMI® In (Rear) 2 (2.0) HDMI In (Front) 1 (2.0) USB-A 2.0 (Rear) 2 USB Touch (Type B) (Rear) 3 USB Touch (Type B) (Front) 1 USB-A 3.0 (faster data transfer) (Rear) 2 USB-A 3.0 (faster data transfer) (Front) 2 LAN In (RJ45) 1x 10/100/1000 Mbps LAN Out (RJ45) 1x 10/100/1000 Mbps RS-232 Yes Wake-on-LAN Yes Wi-Fi® Module Included, IEEE 802.11a/b/g/n/ac Wireless, 2x2 Bluetooth Yes (4.2) DP In 1 (1.2) HDMI Out 1 (2.0) VGA In 1 VGA Audio In 1 CVBS 1 Mic In (3.5 mm) 1 Headphone 1 Proximity Sensor for Warm Boot Yes COMPUTING Operating System Android™ Oreo 8 RAM 4 GB Internal Storage 64 GB (32 GB x2) CPU Quad Core: (2) ARM Cortex A73, (2) ARM
Cortex A53GPU ARM Mali-G51 MP4 Over-the-Air Updates Yes AUDIO Dual Front Facing, Bass Enhanced Speakers 86" 4K: 2 x 20 Watts PACKED CONTENTS What’s in the Box (1) ActivPanel Titanium
(1) 3M Length HDMI Cable
(1) 3M Length USB cable (A-B)
(1) 3M Regional Power Cable
(1) Remote Control
(2) Batteries for Remote Control
(4) ActivPanel Titanium Pens
(1) Block Eraser
(1) Sealed Antistatic Bag
(4) VESA mount screws (M6)
(1) Mini PC Bracket with screws
(2) ActivSoundBar brackets
(1) Quick Install Guide
(1) Promethean Wi-Fi/Bluetooth Module (Ti)
(2) Antenna
(1) Promethean Wi-Fi/Bluetooth Module (Ti)
User Guide
(1) Wall Mount
