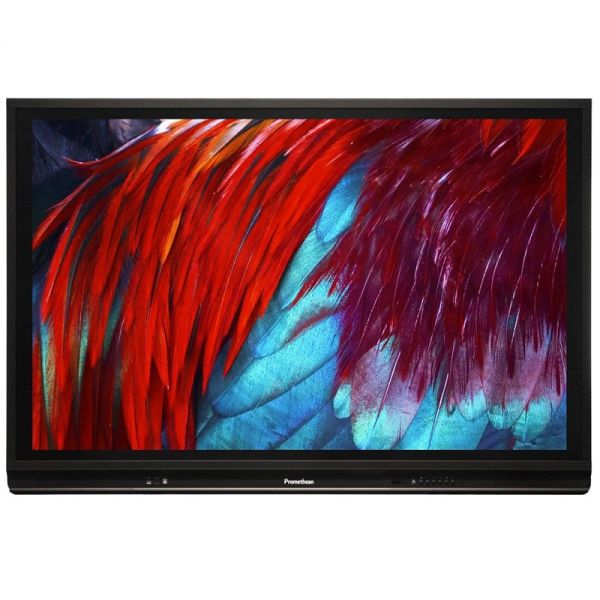

Promethean AP6-86A-4K ActivPanel 86" V6 Interactive Flat Panel
secure transaction
- Diagonal Size Available in 86"
- Screen Type TFT LCD (Direct LED Backlight)
- CPU Realtek RTD1295 Quad Core Up to 1.4 GHz
- RAM 2 GB DDR4
- Ethernet Connectivity x1 RJ-45 (10/100/1000Mbps)
- Aspect Ratio 16:9
- Display Area 86" 4K (74.6 x 41.9 in)
- Resolution 86" 4K (3840 x 2160 px @ 60 Hz)
- Display Colours 1.07 Billion (10 bits)
- Refresh Rate 60 Hz
- Contrast Ratio 4000:1
- Brightness 86" 4K: (400 cd/m2) typical
- Touch differentiated battery-less pen
- Max Touch Response Time 18 ms (first touch), 13 ms (continuous)
- Product Dimensions 61.6 x 38.1 x 3.7 in
- Net Weight 104.7 lbs
Promethean AP6-86A-4K ActivPanel 86" V6 Interactive Flat Panel
Description ActivPanel 86" V6 Interactive Flat Panels Display Diagonal Size Available in 65" 4K, 70" HD, 75" 4K, 86" 4K Screen Type TFT LCD (Direct LED Backlight) Aspect Ratio 16:09 Display Area 86" 4K: 1895 x 1066 mm (74.6 x 41.9 in) Bezel Depth (Glass to bezel edge) 86" 4K (3840 x 2160 px @ 60 Hz) Display Colours 1.07 Billion (10 bits) Response Time 86" 4K: 8 ms Refresh Rate 60 Hz Contrast Ratio 4000:01:00 Brightness 65" 4K , 70" HD, 75" 4K: (350 cd/m2) typical, 86" 4K: (400 cd/m2) typical Glass Hardness 7 Mohs, 9H pencil Glass Type Heat-tempered, Anti-Glare Ambient Light Sensor Yes Freeze Screen Yes Blank Screen Yes Interactivity Continuous Touch Points 86" 4K: Up to 20 Gestures and Edge Swipes Windows Supported Touch Technology InGlass Technology Touch Resolution 0.4 mm (minimum) Contact Detection Height =<0.95 mm @ 2 mm object size Max Touch Response Time 18 ms (first touch), 13 ms (continuous) Touch Accuracy 1 mm Tracking Rate 4 m/s Scan Rate =<6.7 ms Whiteboard Gesture controls, palm and block erase, protractor, ruler, and more Compatibility* Windows 7 to 10
OS X 10.8 to 10.11
macOS Sierra 10.12.1 or later
Linux Ubuntu 16.04 LTS
Chrome OSPen Pens Included 86" 4K: x4 Pen Type Touch differentiated battery-less pen Pen Holder Integrated full-length pen tray and accessory holder Pen Tip Diameter 86" 4K: 2x 2 mm, 2x 5 mm Physical Specifications Product Dimensions (Without Mount) 2039 x 1236 x 115 mm (80.2 x 48.6 x 4.5 in) Net Weight (Without Mount) 77.8 kg (171.5 lbs) Fixed Wall Mount (Vesa) 4 x M8; 800 x 400 mm (31.5 x 15.7 in) Connectivity HDMI In x4 (2.0) HDMI Out x1 USB Touch x4 VGA In x1 VGA Audio In x1 Audio Out (3.5 mm) N/A SPDIF Out x1 YPbPr N/A CVBS N/A Mic In (3.5 mm) x1 Headphone x1 USB 2.0 x2 USB 3.0 x1 RS232 Serial x1 OPS Slot x1 RJ45 In x1 RJ45 Out x1 SD Card x1 Micro Audio Speakers Front-facing stereo speakers Power 86" 4K: 2 x 15 W Android Module Product Name ActivConnect OPS-G Operating System Android 6.0 Marshmallow CPU Realtek RTD1295 Quad Core
Up to 1.4 GHzGPU ARM T820; Up to 4K @ 60Hz RAM 2 GB DDR4 Internal Storage 16 GB Ethernet Connectivity x1 RJ-45 (10/100/1000Mbps) Wi-Fi and Bluetooth IEEE 802.11a/b/g/n Wireless 802.11AC 2x2, Bluetooth 4.1 Connectivity Ports x1 Micro SD card reader and supports memory size up to 32GB; x2 USB-A 2.0; x1 HDMI In; x1 USB-B Touch Hotspot Access Point Yes Power Power Requirements 100V - 240V AC Power Consumption (Normal) 86" 4K: <= 350 W Power Consumption (Standby) <=0.5 W Ultra-Quiet Fanless Design Yes
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
