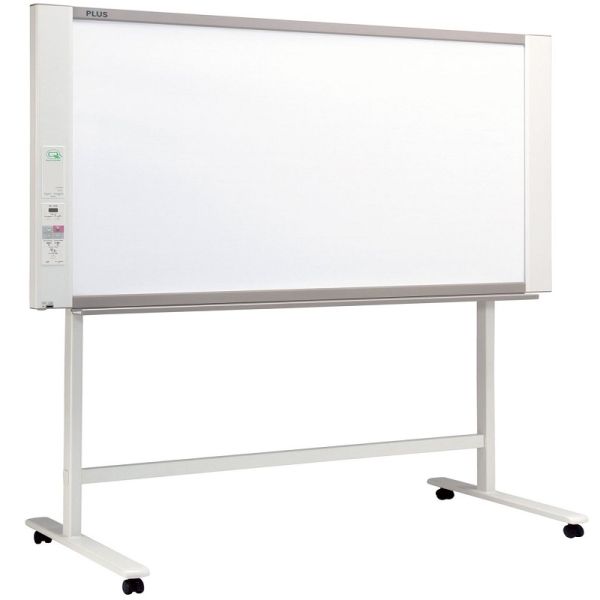

PLUS N-32S Network Capable Electronic Copyboard - 428-290
secure transaction
- Description Electronic Copyboard - Standard
- Panel Size W51.2 × H35.8 inches
- Effective Reading Area W50.4 × H35.4inches
- Grid 2 inch (50mm) Grid
- Scrolling Bi-directional, endless (Horizontal scrolling)
- Drive Method Motorized / Manual
- USB Ports 3 Ports (PC, Printer, USB Flash Memory)
- File Format PDF, PNG & JPG
- Resolution 2458 × 1728 dots (? xed)
- LAN Port RJ-45 (10Base-T/100Base-TX)
- Supported Protocol TCP/IP (FTP/FTPS, HTTP/HTTPS, DHCP, NetBIOS Name Service)
- Weight 44 lbs
PLUS N-32S Network Capable Electronic Copyboard
Description Electronic Copyboard - Standard Size Installation Method Wall Mount or Floor Stand External Dimensions (Without Marker Tray) W58.3 × D3.5 × H39.4 inches Weight 44 lbs External Dimensions With Floor Stand (max.) W58.3 × D26.6 × H76.6* 2 inches Floor Stand Weight 23 lbs Board Panel Size W51.2 × H35.8 inches Effective Reading Area W50.4 × H35.4inches Number of Panels 2 Grid 2 inch Grid Scrolling Bi-directional, endless (Horizontal scrolling) Drive Method Motorized / Manual Reading Method CIS (Contact Image Sensor) Reading Illumination Light Source RGB LED Reading Resolution Main scanning direction (vertical sheet surface) 50 dpi (1.92 dots/mm)
Sub scanning direction (horizontal sheet surface) 50 dpi (1.82 dots/mm)Reading Time Black & White: approx. 15 s
Color: approx 15 sInterface USB Ports 3 Ports: Type B for PC and Type A for Printer and for USB Flash Memory Saved Output File Format PDF, PNG & JPG Resolution 2458 × 1728 dots (? xed) External Memory Compatible FAT types FAT 16, 32 Interface USB 2.0 Network LAN Port RJ-45 (10Base-T/100Base-TX) Supported Protocol TCP/IP (FTP/FTPS, HTTP/HTTPS, DHCP, NetBIOS Name Service) Printing Printing Resolution 300 dpi or equivalent No. Print Colors Eight colors or two color monochrome Printer Interface Conforming to USB 2.0 standards Supported Network Printer Printer server for PLUS Copyboard Software
FTP Supported PrinterIC Card Standard Mifare FallCa Type Mifare: Classic 1k / Classic 4k / Ultralight
FellCa: Lite-S / Lite / StandardDedicated IC Card MIFARE Standard 1k Add Functions Clock Used for the timestamp and for ? le dating properties
(Includes backup battery for when there is a loss of power.)PC Connection Images can be acquired and device settings made via USB (using a browser) Power Supply AC Power Adapter Input: AC100–240V/50–60 Hz, Max 0.75 A
Output: DC 12 V, 3.0 APC Consumption In standby: 3W, During operation: 12W (not including printer) Usage Conditions Temperature 10°C ~ 35°C Humidity 30 ~ 85% (with no condensation) Operating Environment OS Windows 10 / Windows 8 or 8.1
Windows 7 (32 bit / 64 bit) / Mac OS X® 10.5 or laterWeb Browser Windows: Internet Explorer 8.0 or later
Macintosh: Safari 9 or later
*Enable JavaScriptOptional Accessories Rolling Floor Stand (Part #423-084)
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
