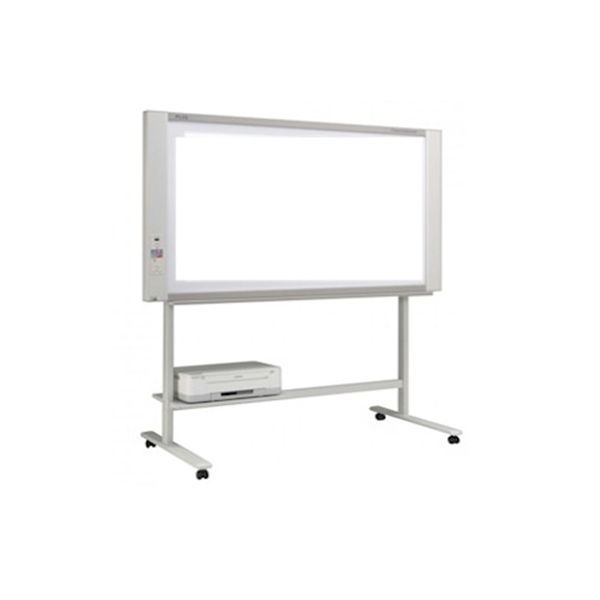

PLUS C-20W CaptureBoard- PLUS C20W Whiteboard - 423131
secure transactionPLUS C-20W CaptureBoard- PLUS C20W Whiteboard - 423131
The PLUS C-20W CaptureBoard plays a significant role in your business by helping you record your ideas without any pause or delay. It secures your information over a safe network and lets you have access to the web browser. Your meetings will be more productive now as with PLUS C20W Whiteboard, there is no need of taking notes. It can be easily moved around and once you run out of spaces, you can make more room by sliding the sheet with your hand. The magnet attachable surface in PLUS C20W Whiteboard helps you to stick drawings and notes on the surface of the board.
It has reading resolution of 1.92 dots / mm for main scanning direction and sub scanning direction with vertical sheet surface and horizontal sheet surface respectively. CaptureBoard - C20W has the added advantages of an easy set-up, wherein the board can be connected to peripheral devices with standard cables like USB. Additionally, PLUS C20W Whiteboard has a simple-to-use control panel that helps you use the board ostensibly.
Plus C-20W Comes Standard With:
- (2) 36" X 71" Panels
- Hand-scrollable sheet
- Less light reflection sheet
- Capture function
- Network function
- Save to USB memory stick
- Low Power Consumption
- Quiet operation
- Magnet attachable panel
- Save to computer(No software is required)
Series name C-20W C-20S Panel size Wide
Standard Number of panels 2
2 Outer Dimensions with stand (Max)*1 W1980 ?~ D675 ?~ H1947mm
W78.0 ?~ D26.6 ?~ H76.7 inchesW1480 ?~ D675 ?~ H1947 mm
W58.3 ?~ D26.6 ?~ H76.7 inchesWeight with stand (excluding printer) 38.5kg / 84.8 lbs.
33.5kg / 73.9 lbs. Board Panel size W1800 ?~ H910 mm
W70.9 ?~ H35.8 inchesW1300 ?~ H910 mm
W51.2 ?~ H35.8 inchesEffective reading size W1780 ?~ H900 mm
W70.1 ?~ H35.4 inchesW1280 ?~ H900 mm
W50.4 ?~ H35.4 inchesNumber of panels 2 Grid - Paging Endless in one direction(horizontal scrolling) Sheet driving method Motorized / Manual Reading method CIS (Contact Image Sensor) Reading illumination light source RGB LED Reading resolution Main scanning direction (vertical sheet surface) 1.92 dots / mm (50 dpi or equivalent),
Sub scanning direction (horizontal sheet surface) 1.92 dots / mm (50 dpi or equivalent)Reading time Color: approx. 21 sec
Black & White: approx. 21 secColor: approx. 15 sec3
Black & White: approx. 15 secPrinter*2 Compatible inkjet printers Epson single/multi function printers
HP PCL3e and some PCL3GUI printersPrinting size A4 / Letter-size Printing paper size A4 (210 x 297 mm) / Letter-size (8.5 x 11") Colors Color or Black & White Continuous printing 1 to 10 copies Interface USB2.0 Hi-Speed Interface Board File format JPEG / PNG / PDF Screen size Standard resolution: 1728 x 864 dots
High resolution: 3456 x 1728 dotsStandard resolution: 1248 x 864 dots
High resolution: 2496 x 1728 dotsExternal memory*3 Type USB flash memory Compatible FAT types FAT16, 32 Interface USB 2.0 Hi-Speed Network LAN port RJ-45
(10Base-T/100Base-TX)Printing Printing resolution 300 dpi or equivalent No. print colors 16 or grayscale Printer interface USB 2.0 Hi-Speed Power supply AC power adapter Input: AC 100-240V/50-60 Hz, Max 0.75A
Output: DC 12V, 3.0APower consumption Standby : 3W, Operation : 12W Operating conditions Temperature 10-35?‹C, 50-95 ?‹F Humidity 30 - 85%?@(no condensation) Accessories Dedicated markers (black, red, blue, green),
Dedicated eraser,
AC power adaptor (with power cord),
USB cable (3m length),
Quick guide,
Assembly and setup manual,
Important safety information,
Printer table, Wall mount brackets,
CD-ROM (C-20 Software (compatible with Windows XP or later ),
User's manual?mPDF?n).Computer operating environment*6 Operating system When using C-20 software: Microsoft Windows XP (Home Edition / Professional Edition Service Pack 3 or later) / Windows Vista (32bit) / Windows 7 (32bit / 64bit)When use the Copyboard as a removable disk: Microsoft Windows XP (Home Edition / Professional Edition Service Pack 2 or later) / Windows Vista (32bit / 64bit) / Windows 7 (32bit / 64bit)Or, Apple Macintosh computer with standard USB port, Mac OS X 10.5 or later Web browser Internet Explorer 8.0 or later
Safari 5 or later
*Enable JavaScriptCompatible computer types Preinstalled models operating on one of the operating systems above
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$199.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
