secure transactionPLUS C-20S CaptureBoard- PLUS C20S Whiteboard

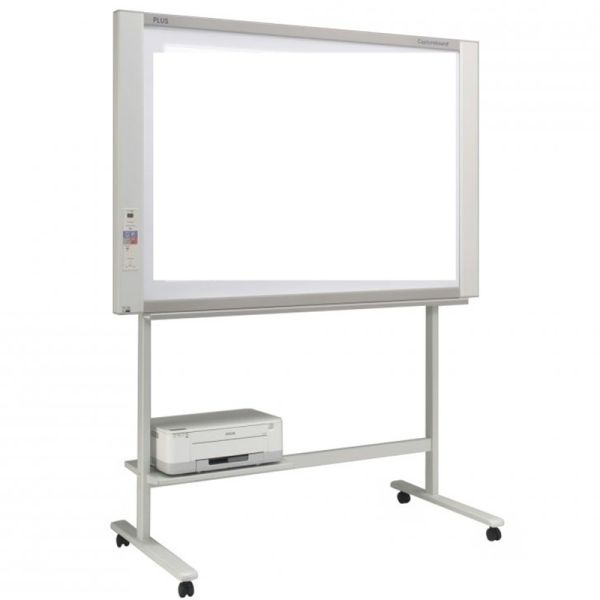

The PLUS C-20S Capture Board - PLUS C20S Whiteboard helps you continue with your thought process (in business) without any delay. Hand written observations and images can be saved in a single file and stored safely in this CaptureBoard. The projector glare is minimized with the sheet surface design while taking care of the writing. C-20S CaptureBoard does not require Notepads and USB Memory sticks, since all you need to do scribble down your ideas on the copy board and share it on the network while keeping it safe at the same time.
The PLUS C20S Whiteboard can be conveniently carried around and once you are short of spaces, you can make more room by sliding the sheet with your hands. A synergy is indirectly built up as you and your employees can discuss ideas and jot them down at the same time. The C20S Whiteboard has reading resolution of 1.92 dots / mm (50 dpi or equivalent)for Main scanning direction (for vertical sheet surface) and Sub scanning direction (for horizontal sheet surface).
Plus C-20S Comes Standard With:
- (2) 36" X 51" Standard Width Panels
- Hand-scrollable sheet
- Less light reflection sheet
- Capture function
- Network function
- Save to USB memory stick
- Low Power Consumption
- Quiet operation
- Magnet attachable panel
- Save to computer(No software is required)
Series name C-20W C-20S Panel size Wide
Standard Number of panels 2
2 Outer Dimensions with stand (Max)*1 W1980 ?~ D675 ?~ H1947mm
W78.0 ?~ D26.6 ?~ H76.7 inchesW1480 ?~ D675 ?~ H1947 mm
W58.3 ?~ D26.6 ?~ H76.7 inchesWeight with stand (excluding printer) 38.5kg / 84.8 lbs.
33.5kg / 73.9 lbs. Board Panel size W1800 ?~ H910 mm
W70.9 ?~ H35.8 inchesW1300 ?~ H910 mm
W51.2 ?~ H35.8 inchesEffective reading size W1780 ?~ H900 mm
W70.1 ?~ H35.4 inchesW1280 ?~ H900 mm
W50.4 ?~ H35.4 inchesNumber of panels 2 Grid - Paging Endless in one direction(horizontal scrolling) Sheet driving method Motorized / Manual Reading method CIS (Contact Image Sensor) Reading illumination light source RGB LED Reading resolution Main scanning direction (vertical sheet surface) 1.92 dots / mm (50 dpi or equivalent),
Sub scanning direction (horizontal sheet surface) 1.92 dots / mm (50 dpi or equivalent)Reading time Color: approx. 21 sec
Black & White: approx. 21 secColor: approx. 15 sec
Black & White: approx. 15 secPrinter*2 Compatible inkjet printers Epson single/multi function printers
HP PCL3e and some PCL3GUI printersPrinting size A4 / Letter-size Printing paper size A4 (210 x 297 mm) / Letter-size (8.5 x 11") Colors Color or Black & White Continuous printing 1 to 10 copies Interface USB2.0 Hi-Speed Interface Board File format JPEG / PNG / PDF Screen size Standard resolution: 1728 x 864 dots
High resolution: 3456 x 1728 dotsStandard resolution: 1248 x 864 dots
High resolution: 2496 x 1728 dotsExternal memory*3 Type USB flash memory Compatible FAT types FAT16, 32 Interface USB 2.0 Hi-Speed Network LAN port RJ-45
(10Base-T/100Base-TX)Printing Printing resolution 300 dpi or equivalent No. print colors 16 or grayscale Printer interface USB 2.0 Hi-Speed Power supply AC power adapter Input: AC 100-240V/50-60 Hz, Max 0.75A
Output: DC 12V, 3.0APower consumption Standby : 3W, Operation : 12W Operating conditions Temperature 10-35?‹C, 50-95 ?‹F Humidity 30 - 85%?@(no condensation) Accessories Dedicated markers (black, red, blue, green),
Dedicated eraser,
AC power adaptor (with power cord),
USB cable (3m length),
Quick guide,
Assembly and setup manual,
Important safety information,
Printer table, Wall mount brackets,
CD-ROM (C-20 Software (compatible with Windows XP or later ),
User's manual?mPDF?n).Computer operating environment*6 Operating system When using C-20 software: Microsoft Windows XP (Home Edition / Professional Edition Service Pack 3 or later) / Windows Vista (32bit) / Windows 7 (32bit / 64bit)
When use the Copyboard as a removable disk: Microsoft Windows XP (Home Edition / Professional Edition Service Pack 2 or later) / Windows Vista (32bit / 64bit) / Windows 7 (32bit / 64bit)
Or, Apple Macintosh computer with standard USB port, Mac OS X 10.5 or laterWeb browser Internet Explorer 8.0 or later
Safari 5 or later
*Enable JavaScriptCompatible computer types Preinstalled models operating on one of the operating systems above
