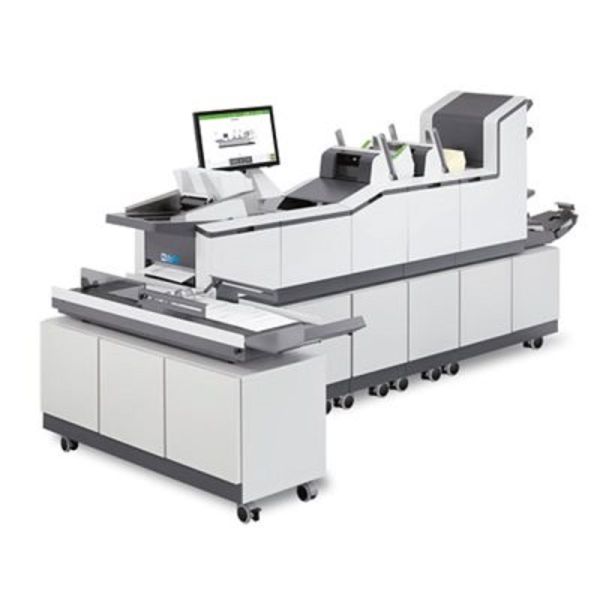

Formax FD 7202-Special 2F Inserter w/ Tower Feeder
secure transaction
- Inserter w/ Tower Feeder
- Tower Feeder Sheet Capacity Two 1,000-sheet Flex Feeders
- Speed Up to 5,000/hour #10 envelopes
- Fold Types C, Half, Z, Double Parallel and no fold
- Max Number of Full Page Inserts Up to 50 sheets
- Tower Feeder Sheet Size 3.63” - 16” L x 5.75” - 12” W
- Envelope Size #10, 6” x 9”, flats up to 10” x 13”
- Sheet/Insert Thickness 70gsm up to 2 mm
- Weight 876 lbs.
- Duty Cycle Up to 200,000 pieces per month
- Voltage 110 V, 60 Hz, 10Amp
Formax FD 7202-Special 2F Inserter w/ Tower Feeder
Product Type Inserter Model No. FD 7202-Special 2F Tower Feeder Sheet Capacity Two 1,000-sheet Flex Feeders Speed Up to 5,000/hour #10 envelopes Fold Types C, Half, Z, Double Parallel and no fold Max Number of Full Page Inserts Up to 50 sheets Envelope Hopper Top-loading, up to 800 standard envelopes or 500 flat envelopes (landscape orientation) Tower Feeder Sheet Size 3.63” - 16” L x 5.75” - 12” W Envelope Size #10, 6” x 9”, flats up to 10” x 13” Sheet/Insert Thickness 70gsm up to 2 mm Dimensions 107” L x 36” H x 25” D Weight 876 lbs. Duty Cycle Up to 200,000 pieces per month Voltage 110 V, 60 Hz, 10Amp
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
