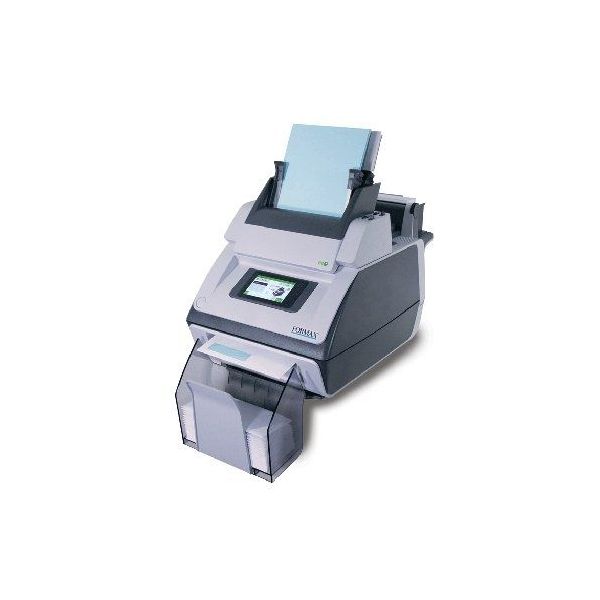

Formax FD 6104 Low-Volume Inserter with Two Sheet Feeders - Replacing FD-6102 Folder
secure transaction
- Speed of 1,350 pieces/hour
- Duty cycle: 5,000 pieces/month
- 2 1/2 stations insert 1-2 sheets
- 1 dedicated insert/BRE feeder
- Fully automatic adjustments
- 15 programmable fold applications
- Color touchscreen control panel
- Folds and inserts up to 14" length paper
- Double document detection
- Seal and non-seal capabilities
- Energy saving Eco Mode
- Fold types: Letter, Half, Double Parallel & No Fold
- Fold only without inserting
Formax FD 6104 Low-Volume Inserter with Two Sheet Feeders Specification
Hopper Capacity: Up to 100 sheets in each sheet feeder (20#)
Up to 100 inserts/BREs in the insert feeder
Up to 100 outgoing envelopesFixed Speed: Up to 1,350 pieces per hour Duty Cycle: Up to 5,000 pieces per month Folding Capacity: Up to 5 sheets at once Programmable Jobs: Up to 15 Paper Size: 5.6” - 8.9’’ W x 7” - 14” H Paper Weight: 18 - 30 lbs (68 - 113gsm) Insert/BRE Size: 5.6” - 8.9” W x 3.5” - 5.9” H Insert Weight: 20 - 62 lbs (75 - 233gsm) BRE Weight: 19 - 30 lbs (71 - 113gsm) Outgoing Envelope Size: 8.8” - 9.5” W x 4.1” - 6” H+A11:A21 Dimensions w/o catch tray: 26” L x 17” W x 22” H Weight: 82 lbs Voltage: 120 Volts AC 50/60Hz Safety Certifications: UL approved
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
