Formax FD 322 Desktop Document Folder

Formax Atlas-AS Air-Feed Document Folder

Formax FD 6204-Basic-1 Office Paper Folder and Inserter

Rating:

100 % of 100

1 Review Add Your Review

Availability: In stock

SKU

Formax FD 322

Condition

New

Compare with Similar items

Request a Quote

Details

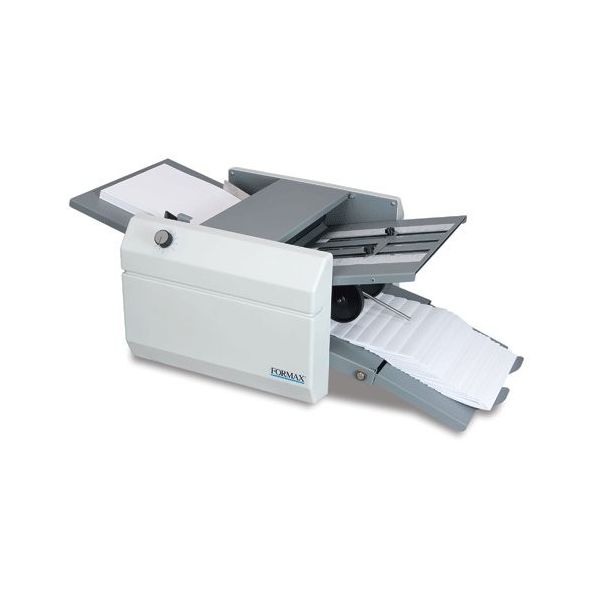

Formax FD 322 Desktop Document Folder

The Formax FD 322 Desktop Document Folder folds documents at speeds up to 11,000 sheets per hour and can process paper up to 17” long. Its drop-in feed system has a capacity of up to 250 sheets and features three feed tires for accurate, consistent feeding. Fold plates are pre-marked with three common fold settings for letter, zig-zag, and half and can be easily adjusted for custom folds including gate, fold out, and double parallel. The FD 322 Desktop Folder’s output is controlled by a variable-speed knob.

In addition, the built-in output conveyor provides neat and sequential stacking of folded sheets, making it easier for operators to unload. The FD 322 compact size and user-friendly operation make the FD 322 the ideal solution for churches, schools, and offices that demand quick and easy set-up and operation. Get the FD 322 Desktop Document Folder

Reviews 1

Write Your Own Review

You're reviewing:Formax FD 322 Desktop Document Folder

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Video

Comes Standard

Formax FD 322 Comes Standard With:

Fold type: friction
Variable speed of up to11,000 sheets/hour
Paper size: up to 11¾" x 18"
Sheet capacity of 250 of 20# (75gsm)
Pre-marked for 3 popular folds
3 custom folds
Drop-in feed system
Skew adjustment
Built-in conveyor for neat, sequential stacking of folded sheets
Compact, rugged and easy to operate

Specifications

Formax FD 322 Desktop Document Folder

Brand Name:	Formax
Fold Adjustment Setting:	Manual
Feed Type:	Friction Fed
Fold Types:	Half Fold, Letter Fold (Tri), Z Fold, Gate Fold, Double Parallel Fold, Fold Out
Fold Speed:	11,000 sheets/hour
Feed Tray Capacity:	250 sheets
Accepted Paper Sizes:	3 1/8" x 4" to 11 3/4" x 18"
Weight:	55 lbs.
Height:	11"
Width:	18"
Length:	47" - fully exended, 38" - closed
Voltage:	110 V, other voltage available
Max Paper Weight:	75 g/m² / 50# offset / 20# bond
Paper Type:	Non glossy paper only ,call us for coated stock
Duty Cycle:	Commercial Grade
Depth:	24”
