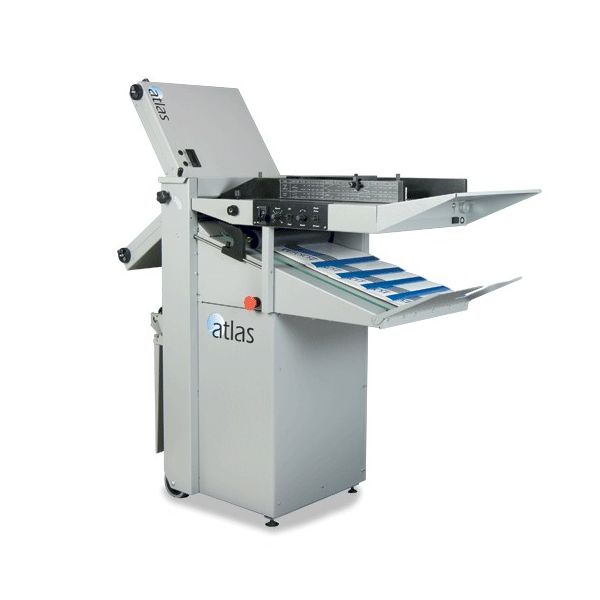

Formax Atlas Air Feed Document Folder
secure transactionFormax Atlas Air Feed Document Folder
Formax Atlas Air-Feed is a high volume folder is a tough and heavy duty folding machine with a small foot print. It comes with a variety of speed control that can fold up to 27,000 sheets per hour. Formax Atlas Air-Feed comes with 6 standard fold setting for 18 pre-set fold settings which can be pre-set for letter, legal or ledger paper sizes. The fold plates provide dials to 0.1mm accuracy. The fold rollers are rugged and long lasting to grip even glossy papers.
Atlas commanding air suction feed table can handle a variety of papers coated or non-coated stock up to 25.5” in length which aligns prior to folding. This Formax Folding Machine comes with optional accessories to help you do the job easier. It can do any paper weight between 16# bond to 90#.
- Speed: Up to 27,000 per hour *
- Hopper Capacity: Up to 500 sheets, 22# bond
- Pre-Set Folds: Pre-programmed for C, V, Z, Gate, Fold Out and Double Parallel
- Paper Sizes: Min: 5.8” L x 5.5” W (3.7” with optional narrow sheet attachment)
- Max: 25.5” L x 14.3” W
- Paper Weight: Min: 16# bond
- Max: 90# cover (variable, based on material and grain direction)
- Programmable jobs: Up to 6
- Dimensions: 45.9” L x 19.4” D x 50.4” H
- Weight: 265 lbs
- Power: 220V/230V, 50/60Hz, 30 Amp
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
